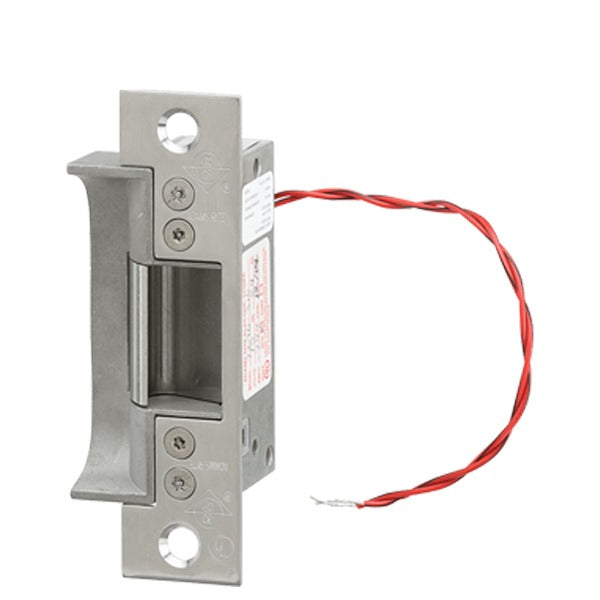

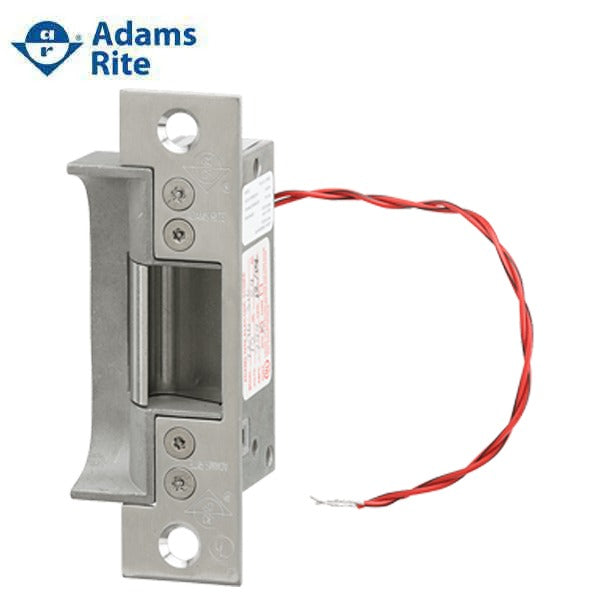

Adams Rite - 7270-310 - Electric Strike - Fire Rated - Cylindrical Latch -12VDC - Fail Secure - 630/32D - Satin Stainless Steel
Adams Rite - 7270-310 - Electric Strike - Fire Rated - Cylindrical Latch -12VDC - Fail Secure - 630/32D - Satin Stainless Steel
The 7270 series Electric Strike with 4-7/8" faceplates are specifically designed for mortise or cylindrical locksets with up to 3/4" latchbolt projection without a deadbolt. It provides remote electrical control of doors equipped with a mortise or cylindrical (key-in-knob/lever) type locksets with up to 3/4" latchbolt projection without a deadbolt. It functions in such a way that the electrical actuation unlocks strike jaw, releasing the latchbolt so that the door can be opened without operating the latch itself. The Adams Rite 7270 series super compact mechanism fits smoothly into jamb sections as shallow as 1-7/8". It is a fire-rated device in fail-secure mode.
Features:
- UL10C, CAN/ULC-S104 fire-rated 3 hr. electric strike in fail-secure mode
- 12 VDC continuous or intermittent voltage operation
- Current draw/amps for 12V operation-DC continuous - 033A
- Stainless steel split-jaw is included with 0.62" x 1-0.43" x 0.56" deep strike opening
- Provides an electrical remote control, allowing the door to open without depressing the panic hardware crossbar
- UL1034 burglary-resistant listed hardware
- Lip extensions - 1-0.06" or less
- Fail secure as standard
Specifications:
| Faceplate Size | 4-7/8" x 1-1/4" |
| Function | Electric Strike |
| Operating Voltage | 12VDC |
| Switch Type | None |
| Faceplate Shape | Flat with square Corners |
| Series | 7200 Series |
| Voltage | 12 VDC |
| For Use with | Mortise or Cylindrical Locksets |
| Application | Hollow Metal doors |
| Warranty | 5 years |
| Strike Opening | 3/4" x 1-7/16" x 5/8" |
| Current Draw | 0.33A at 12VDC; 1.42A at 12VAC |
| Latch Throw | 3/4" |
| Amp Draw | 0.33A |
| Strike Lip | 1-3/4" |
