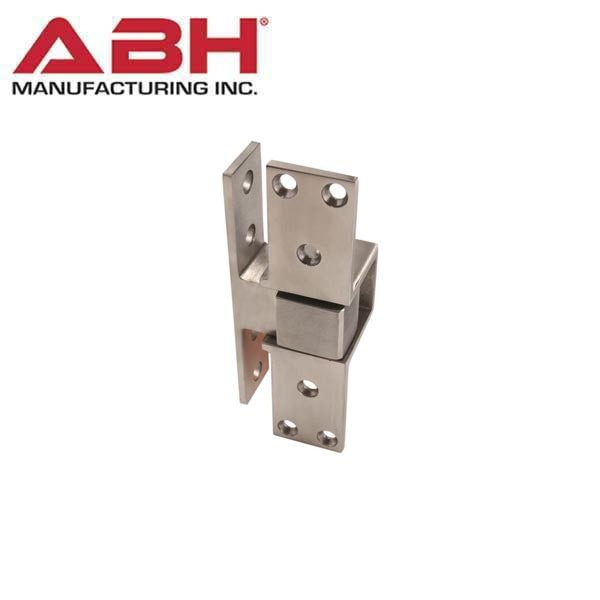

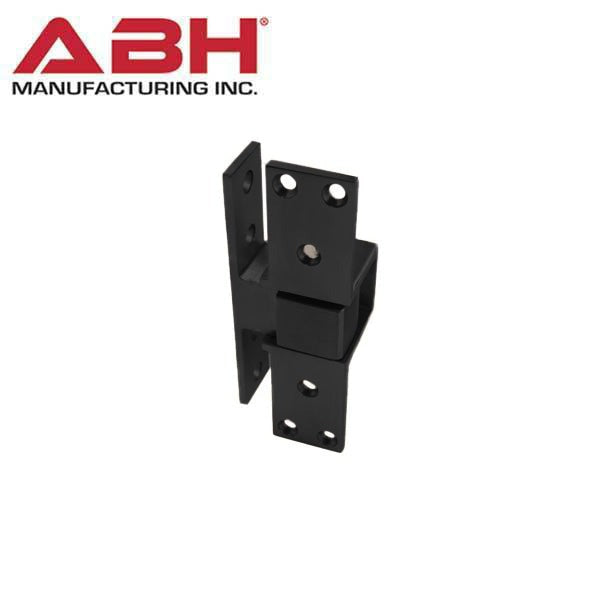

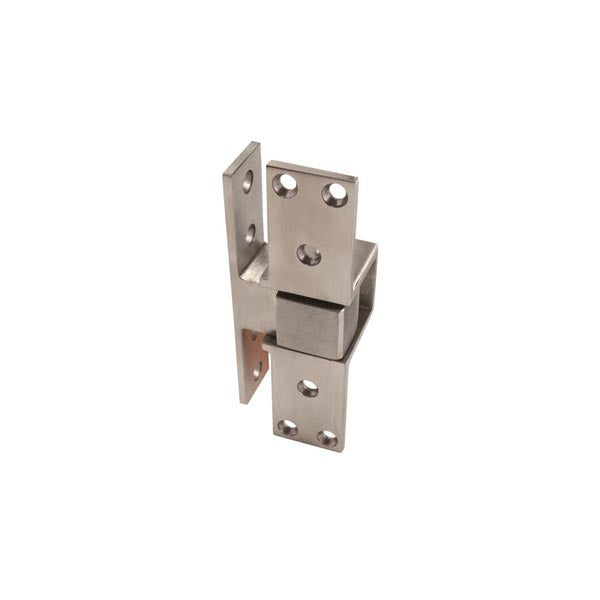

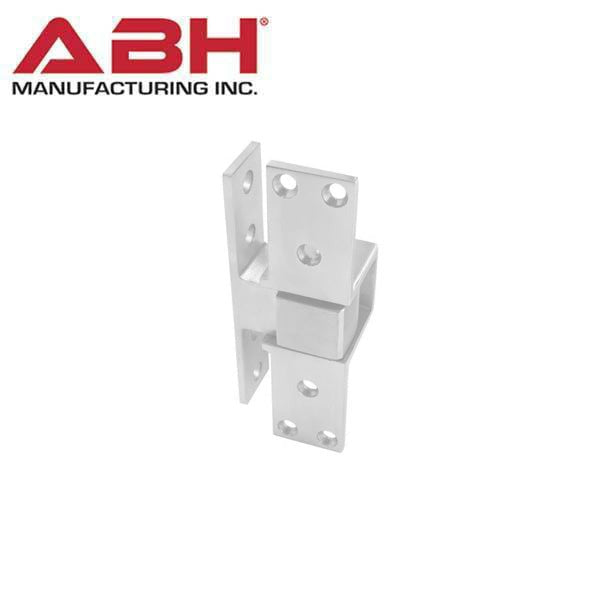

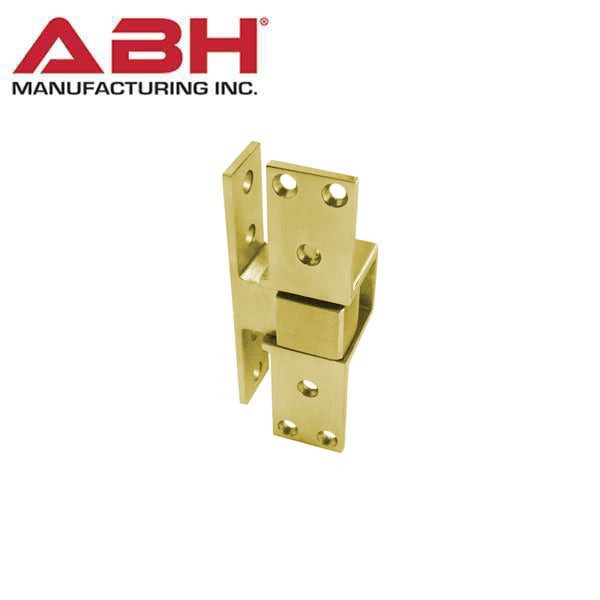

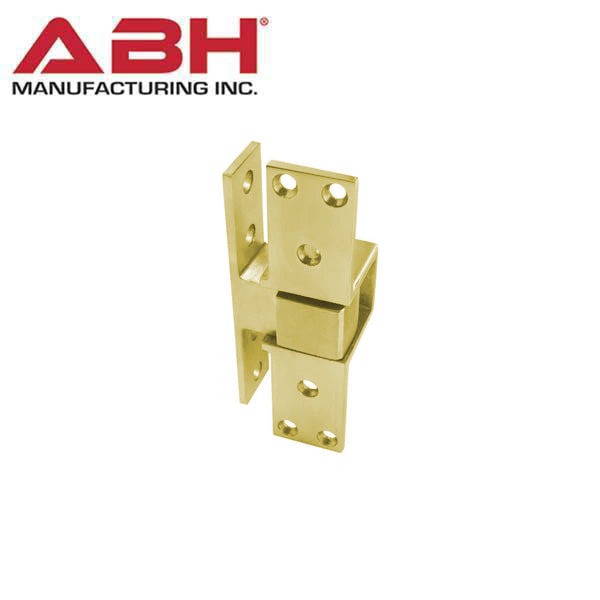

ABH - 0519 Pocket Pivot - Optional Finish

ABH-0519

Architectural Builders Hardware Mfg. Inc. (ABH) is a high-quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

Features:

• Pivot point is located inside the frame
• Allows the door to swing into a pocket in the frame at a right angle
• When the door is in the pocket, it is completely clear of the door opening and flush with an adjacent wall
• Maximum door swing is 90°
• Minimum three pocket pivots per door 60" - 90" tall
• Add one pocket pivot for each additional 30" door height
• Maximum door load per pivot - 90 pounds
• Non-handed
• UL listed for use on 3-hour fire rated doors - Standard
• Heavy duty stainless steel needle bearings
• Stainless steel base material
• Average weight per unit = 2.5 lbs

Downloads:

• Spec Sheet
