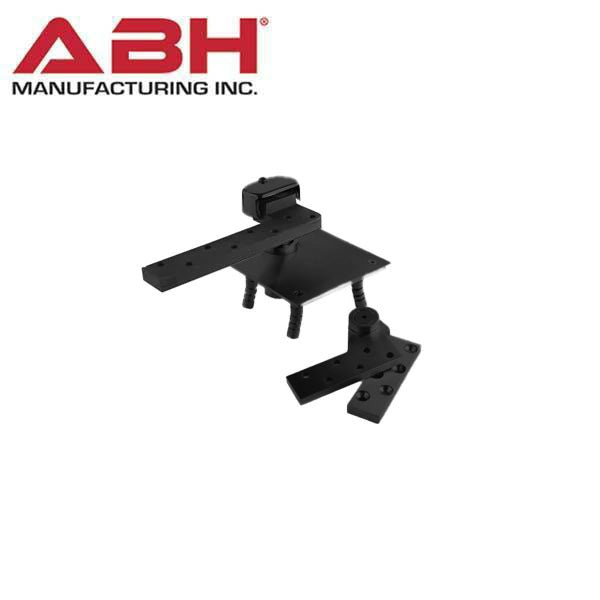

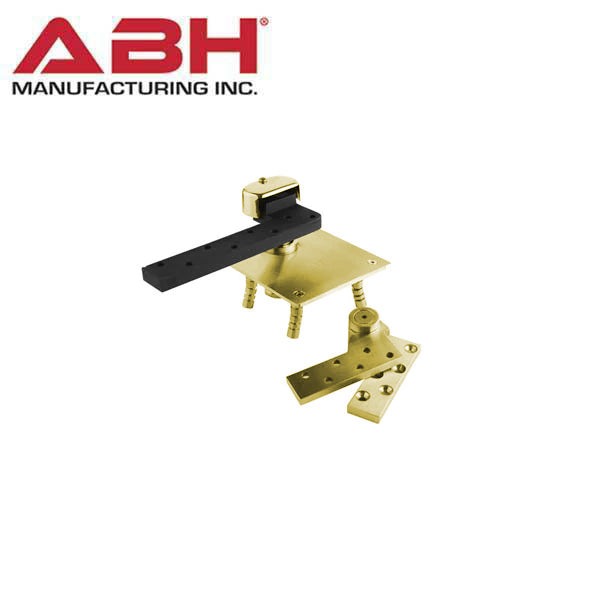

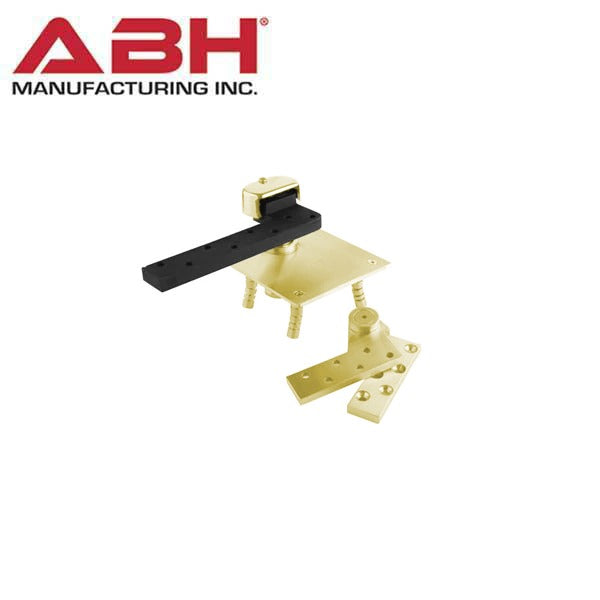

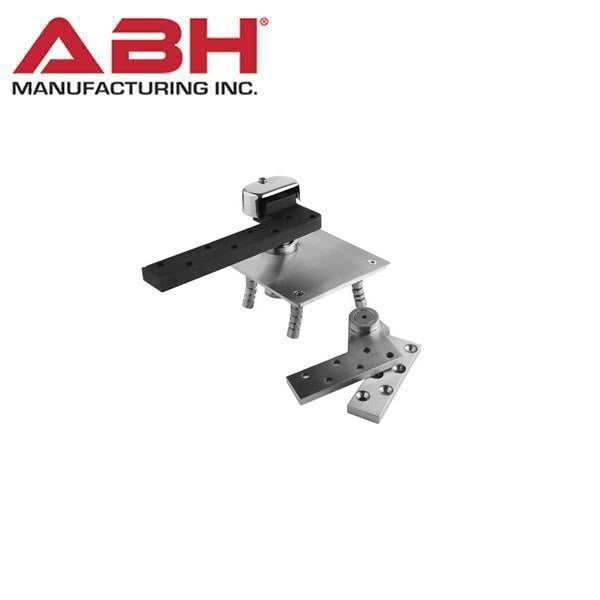

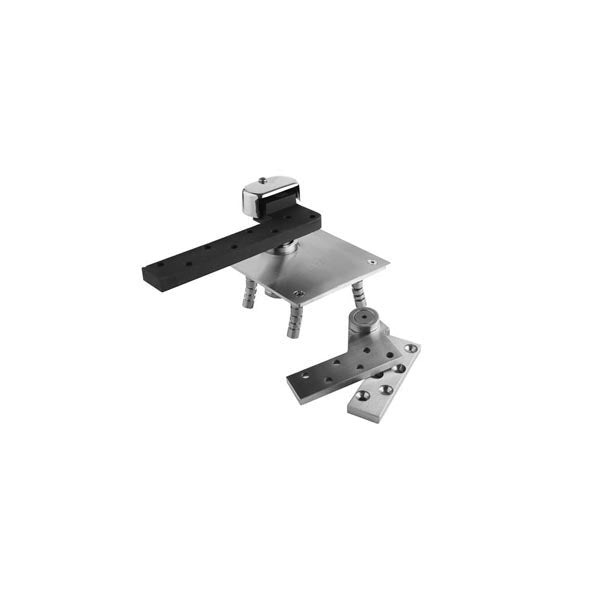

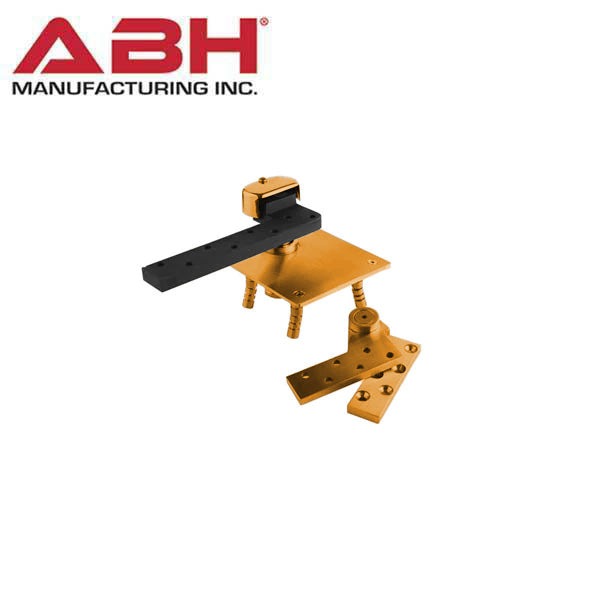

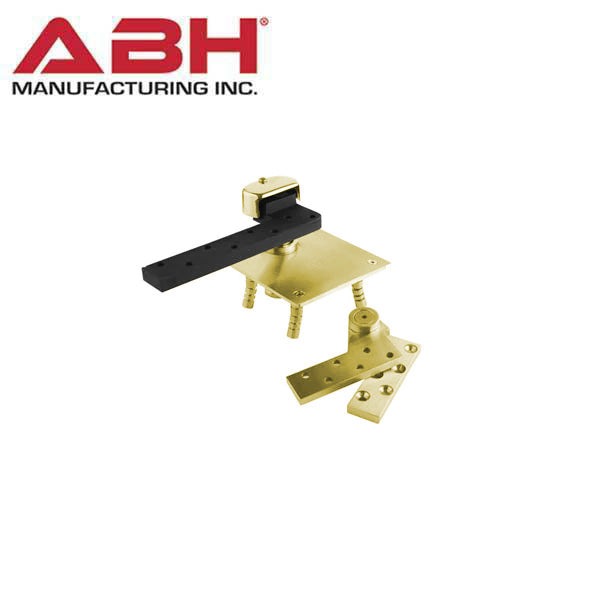

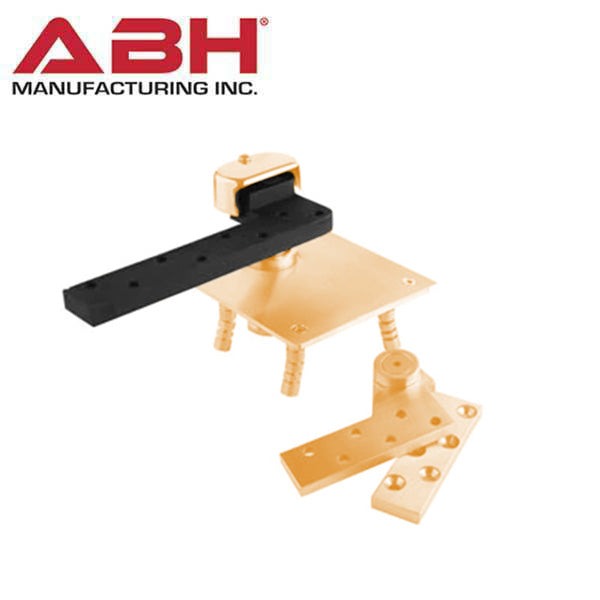

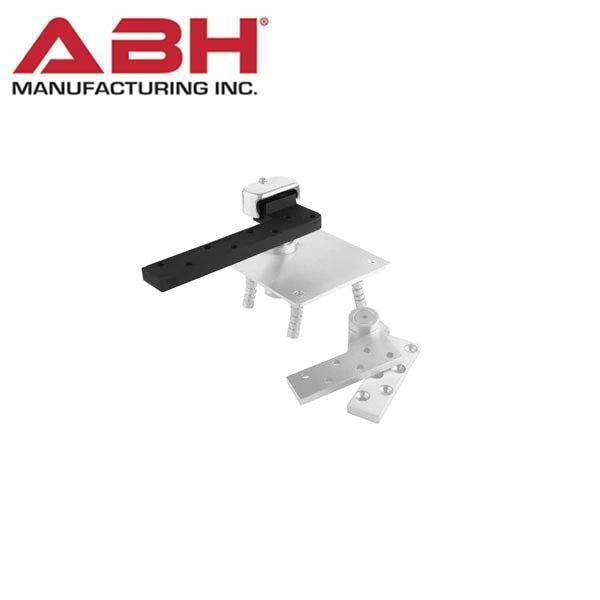

ABH - L0117 Pivot Set - 3/4" Offset - Optional Finish - Optional Handing

ABH-L0117

Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

Features:

• L019 intermediate pivot required (order separately)
• For use on 1-3/4" lead-lined doors
• Handed - Specify LH or RH
• Maximum door load 1,750 pounds
• Maxium door width - 48"
• UL listed for use on 3-hour fire rated doors - Standard
• Heavy Duty bearings
• Stainless steel base material
• Average weight per unit = 9 lbs
• Doors ranging from 60" to 90” tall should use one intermediate pivot. An additional intermediate pivot should be used for each additional 30" in door height



Includes:

• L0180 Top Pivot
  • Frame leaf mortises into header
  • Door leaf mortises into top of door
• L0117B Bottom Pivot
  • Bottom leaf mortises into floor
  • Door leaf mortises into botton of door

Downloads:

• Spec Sheet
