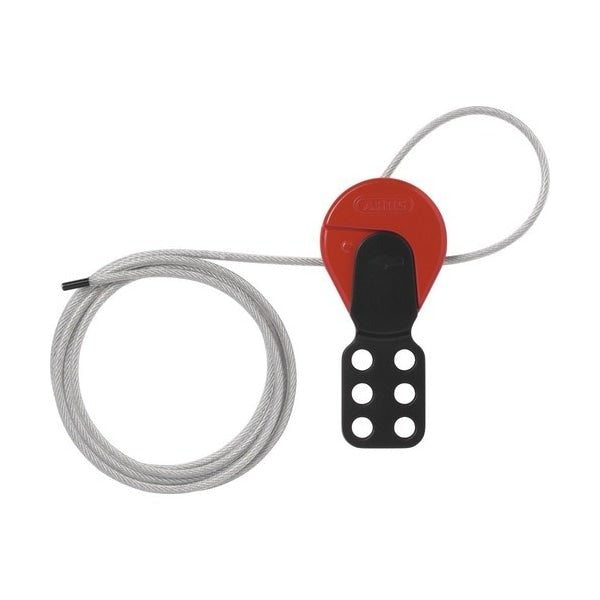

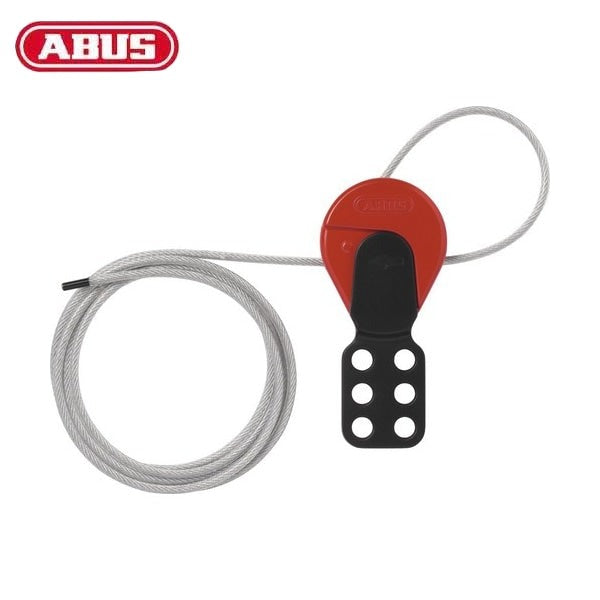

Abus - 00347 - Safelex Universal Cable Lockout - Optional Lengths

Safelex Universal Cable Lockout C506 The cable lockouts can be used to lock many different energy sources. From the hand wheel to the

• Lockout device with isolated metal cable in different lengths
• Patented grip mechanism for easy adjustment of the cable
• Retightening the cable is possible even after locking the device
• NOTE: This Item Does NOT Qualify for FREE Shipping- Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday, 9AM-6PM EST

THE ALL-PURPOSE SOLUTION FOR LOTO:

The cable can be used to secure valves, hand wheels, door hardware, or access points against unauthorized access.

The Safelex cable lockouts are available with cables of different lengths ranging from 1 to 5 meters. The clamping mechanism ensures a firm hold and can be readjusted if necessary. Secured with up to six padlocks.

Technology:

• Intuitive design for self-explanatory application
• Patented grip mechanism for secure fixation of the cable
• Retightening possible at any time, even when locked
• Isolated, exchangeable metal cable in different lengths
• Holds up to 6 padlocks

Operation and use:

• Universal lockout device for locking out different energy sources during maintenance

Variants:

• C503: Length 3"
• C506: Length 6"
• C509: Length 9"
• C515: Length 15"

Cable Diameter:	5/32 inch
Cable Length:	78 47/64 inch
Depth:	1 1/32 inch
Finish:	rot
Length:	5 3⁄64 inch
Locking Points:	6
Shackle Diameter:	23/64 inch
Weight [lbs]:	1.75 lbs
Width:	2 13/32 inch
