Adams Rite - 2190 - Dual Force Interconnected Boxed Lockset - 1-1/2" Backset - Less Strike - Satin Stainless Steel
Adams Rite - 2190 - Dual Force Interconnected Boxed Lockset - 1-1/2" Backset - Less Strike - Satin Stainless Steel
Couldn't load pickup availability

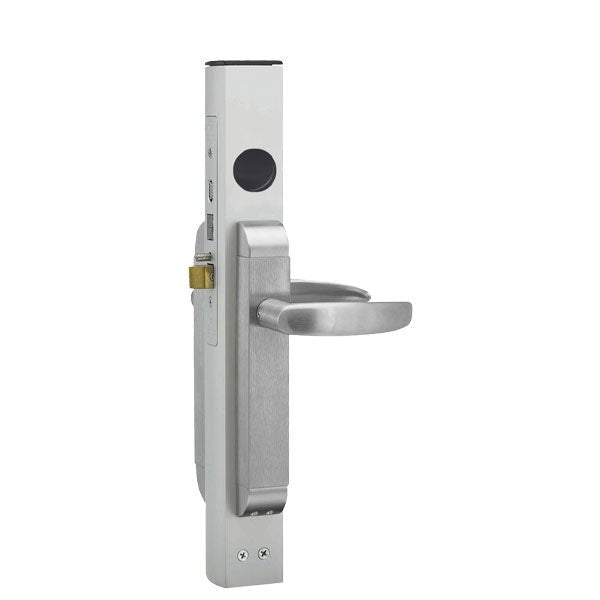

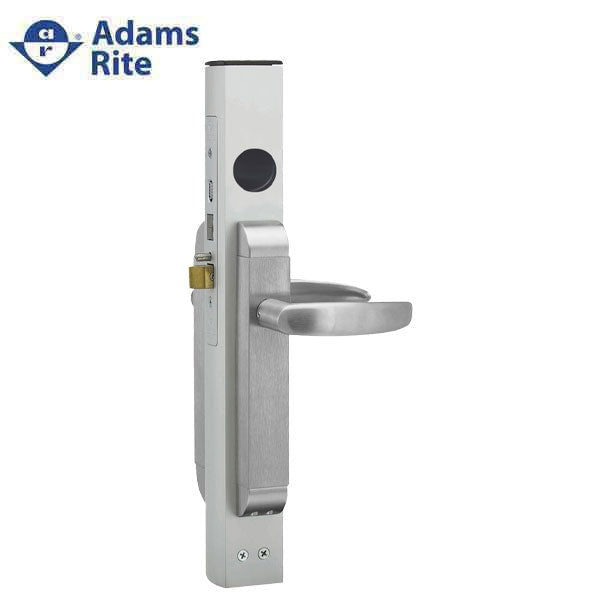

The 2190-401-101-32D from Adams Rite is a dual force lock, exterior trim set and 1-1/2" backset in satin stainless. The 2190 series Deadlock/Deadlatch combines the access control capabilities of a latch with the security of a deadbolt. The key retracts and extends the deadbolt (and deadlatch) from either side. The exterior lever retracts the latch only while the inside lever retracts the deadbolt and latch simultaneously for fast, easy, panic-proof exiting. It operates in such a way that the latch holdback feature activated or deactivated by turning key to retract latch and sliding holdback button on faceplate down to hold and up to release. It is intended for out-swinging doors.
Features:
| Backset | 1-1/2" |
| Lachbolt | Solid Brass 5/8" throw, easily reversible using only a screwdriver |
| Deadbolt | Stainless Steel that measure 1" throw |
| Auxillary Bolt | made of stainless steel, deadlocks latch bolt prevents "loiding" or case knife entry |
| Faceplate | 1" x 6-7/8" clear anodized finish |
| Door thickness | 1-3/4" minimum door thickness is required, also field-selectable inter-connection feature allows interior trim to retract deadbolt and deadlatch |
| Strike | Less Strike/No Strike |
| Door Type | Out Swinging Doors |
| Grade | Grade 1 |
| Handle | Curve Handle |
