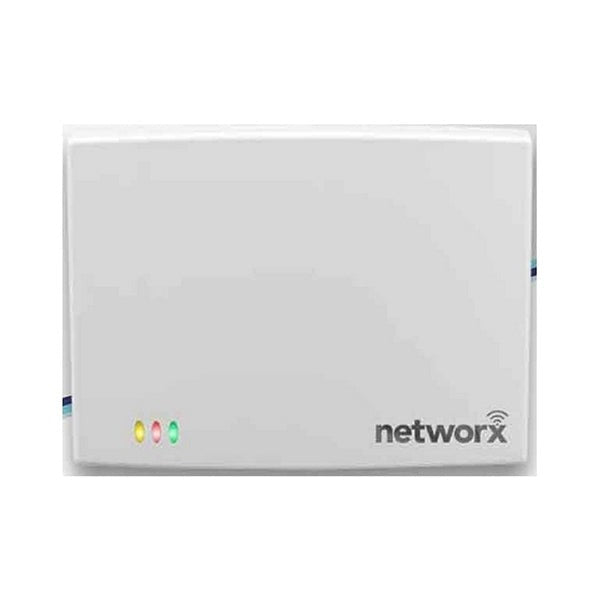

Alarm Lock Networx - IME2-EXP-POE - Expander Module - POE Power Over Ethernet
Alarm Lock Networx - IME2-EXP-POE - Expander Module - POE Power Over Ethernet
Couldn't load pickup availability
Hardwired Gateway, interfaces up to 63 Networx locks with PC network with hardwired Ethernet RJ45 with POE (Power Over Ethernet)
Features and benefits:

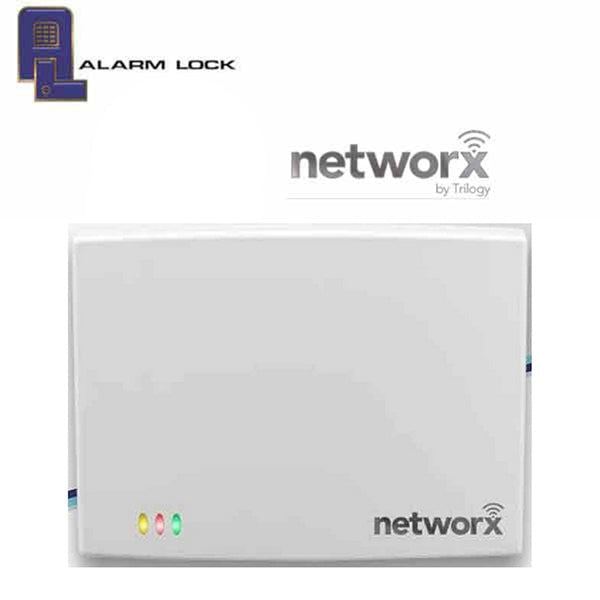

The Trilogy® Networx™ AL-IME2-POE (Power Over Ethernet) Hardwired Gateway Interface Module interfaces Networx locks with a PC network with hardwire Power-Over-Ethernet. It is very similar in function to the original hardwired Networx Gateway Modules, but is enhanced with alternative power, and additional extended potential range, supporting up to seven (7) Expanders (model AL-IME2-EXP Expanders). Also both Generation 2 Gateways and matching Expanders have a new modern styling, and three LED indicators, blending into any décor. AL-IME2-EXP Specifications
- Maximum of 7 AL-IME-EXP Expanders per one Version 2 Series Gateway (Addressed as one group) NETWORK RANGE
- Gateway/Expander to Locks: Clear field range 500’. Typical indoor range, Networx 75- 175’; ArchiTech Networx 50 -125’. Note: Actual range varies with building construction.
- Gateway/Expander to Expander: Clear field range 500’. Typical indoor range, 75- 175’. Note: Actual range varies with building construction. AL RADIO LINK
- 900 MHz GFSK
- 50 Channels
- 10 mW power output POWER
- Peak Supply Current: 650 mA
- Input Voltage: 5 - 6 volts AC
- Requires one(1) 6VAC External Power Supply ENVIRONMENTAL
- Operating Temperature: -20˚ to 60˚C (-4˚ to 140˚F)
- Storage Temperature: -40˚ to 85˚C (-40˚ to 185˚F) SOFTWARE SUPPORTED
- Trilogy Networx supported by Alarm Lock DL-WINDOWS for centralized programming, database management and updates; free download available online. Optional Enterprise Real-Time Processing Solution choice of Lenel OnGuard® or Continental CardAccess® Integration. PHYSICAL CHARACTERISTICS
- Enclosure Size 4.5”H x 6.0”W x 1.94”D, 0.5lbs
| Dimensions | 4.5 (H) x 6.0 (W) x 1.94 (D) in. |
| Environmental | Operating Temperature: -4˚ to 140˚F (-20˚ to 60˚C) |
| Network Interface | Ethernet, 10Base-T or 100Base-TX (using RJ-45 jack) |
| Wireless Protocol | 900MHz, DHCP, TCP/IP, UDP/IP |
| Power | POE (Power Over Ethernet) |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
| Manufacturer | Alarm Lock |
| Brand | Trilogy Networx |
| Weight | 0.5 lbs |
| Warranty | 2 Year Manufacturer |
