Autel - TESKIT - Diagnostic Adapter Cables for Tesla S / X Models Work - Works with MaxiSYS Ultra / MS909 / MS919 Tablet

The Autel TESTKIT enables Autel Tablet to Activate Factory Mode and Perform System Diagnostics to Tesla Models S and X vehicles.

Compatible with: Autel MaxiSYS Ultra, MaxiSYS MS909, MaxiSYS MS919.

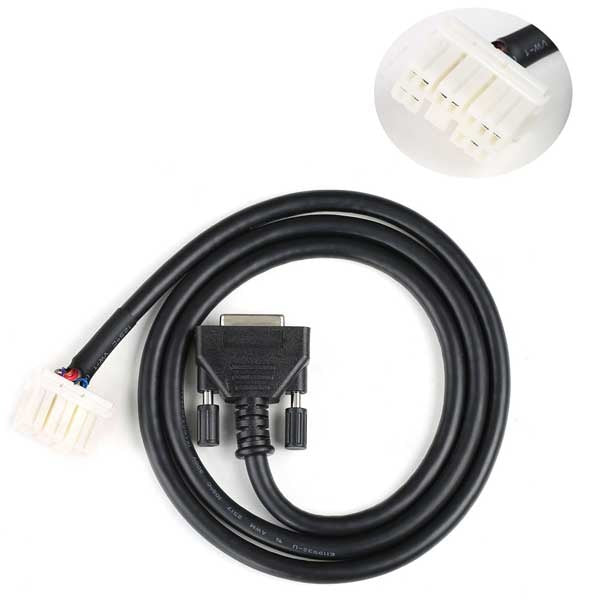

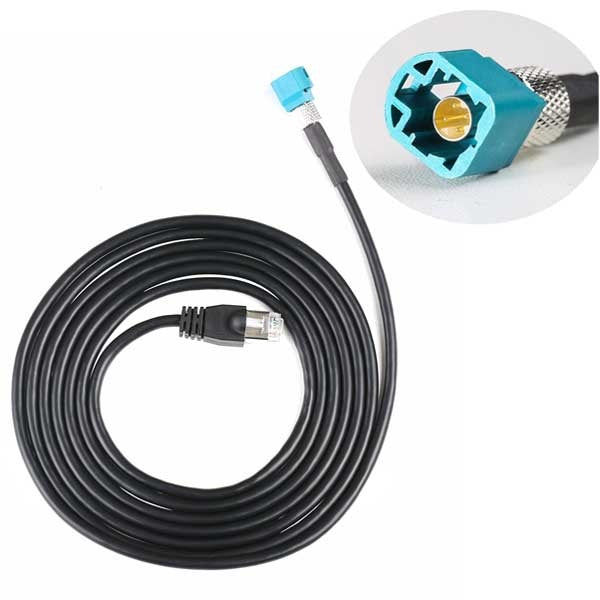

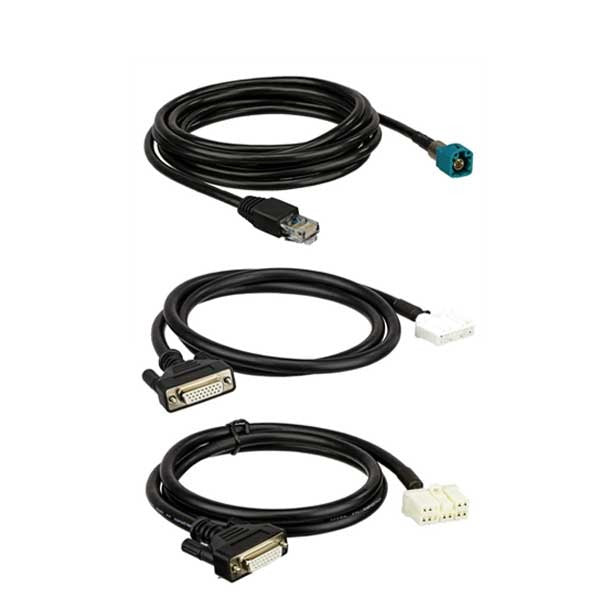

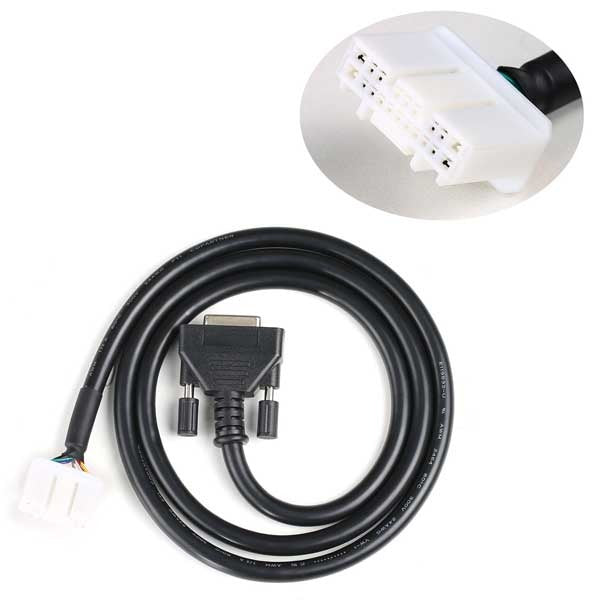

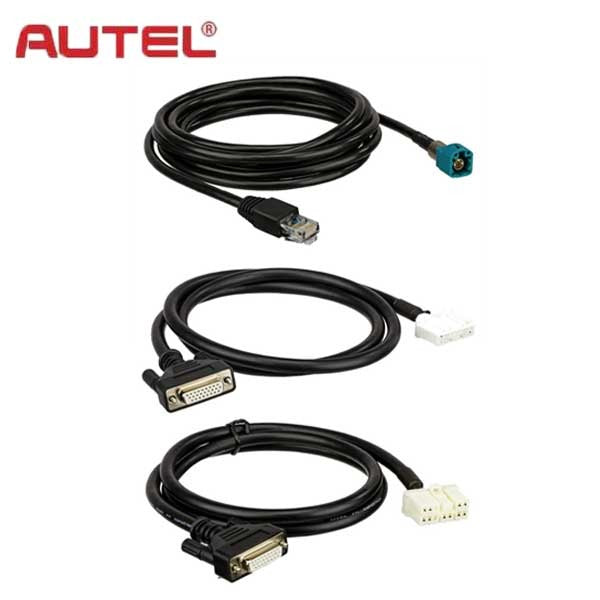

Includes:

• 1x Cable LAN001
• 1x Cable CAN001
• 1x Cable CAN002

Cable functions:

LAN001:
- Connects to Tesla port X861 (located behind the instrument cluster) to activate factory mode (instrument cluster must be disassembled)
- Connects to Tesla port X863 (located below the central control screen) for diagnostics of post-2015/Sept vehicles.
- Connects to Tesla port X863 (located to the left of the instrument cluster) for diagnostics pre-2015/Sept vehicles.

CAN001:
- Connects to Tesla port X437 (located below the central control screen) for diagnostics of post-2015/Sept vehicles.

CAN002:
- Connects to Tesla port X437 (located below the central control screen) for diagnostics of pre-2015/Sept vehicles.
