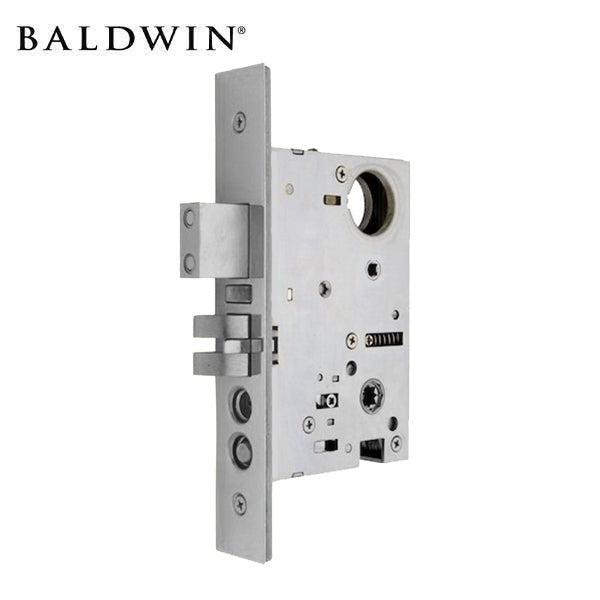

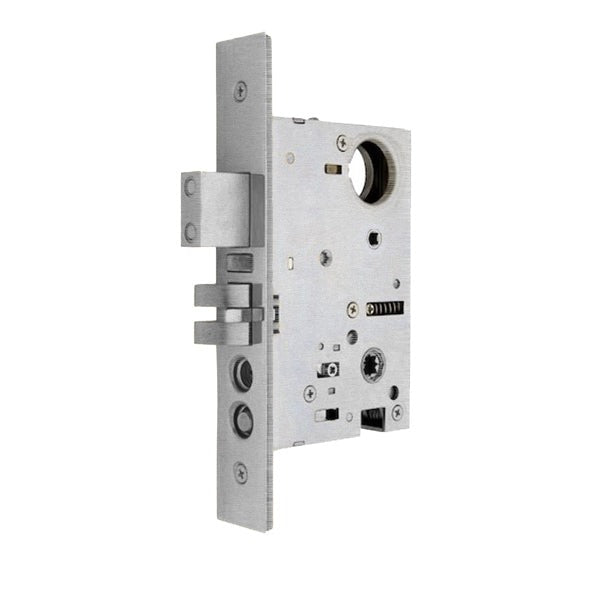

Baldwin - 6320 - Mortise Lock - 2 1/2" Backset - Entrance - Optional Handing - 260 - Polished Chrome

Mortise Lock comes with (6340) ASA Strike as standard. Latch bolt by knob from either side, except when outside knob is locked by stop in front, then latch bolt by key outside and knob inside. Deadbolt by key outside and turn piece inside. Continuous turn of key outside retracts both latch and deadbolt. 1 in. throw Deadbolt with saw-proof inserts is standard equipment. Not available for 2 in. or smaller backsets. When extended, Deadbolt deadlocks latch bolt (except for 6830/6832)

Features

• Baldwin Estate 6320 (2.5" backset)
• Residential Entrance mortise lock
• Latch bolt by thumb piece outside and knob/lever inside, except when thumb-piece is locked by stop in front; then latch bolt by key outside and knob/lever inside
• Deadbolt by key outside and turn piece inside. Continuous turn of key outside retracts both latch and deadbolt.
• 1" (25mm) throw deadbolt with saw-proof inserts is standard equipment.
• Sold with Strike Plate and Face plate
• When extended, deadbolt deadlocks latch bolt
• For use with single and double cylinder applications

Downloads

• Product Template
