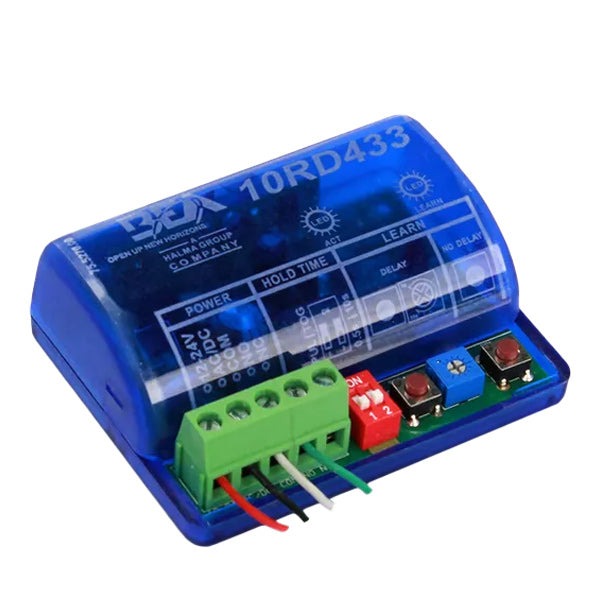

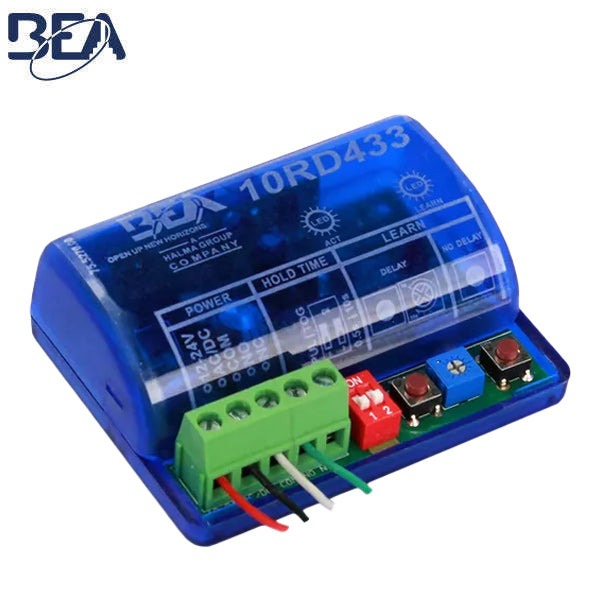

BEA - Wireless Receiver - Digital - 12 to 24V AC/DC - 433 MHz
BEA - Wireless Receiver - Digital - 12 to 24V AC/DC - 433 MHz
Regular price
$12.82 USD
Regular price
$42.75 USD
Sale price
$12.82 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
This is a 433 MHz wireless receiver for BEA Access control.
Features:
-
Enhances Accessibility:
It offers a means of activating automatic doors for those with limited mobility or disabilities. -
Pair With BEA Push Plates
Reduce the installation time by eliminating the need to run wires from the push plate or use additional mounting hardware. -
Extended Hold Time
Extended hold time receiver will hold the door open for as long as the button is pressed -
Learn Modes
Delay and no-delay learn modes provide either instant or delayed activation for sequencing doors.
Specifications
| Frequency | 433 MHz |
| Radio Control Type | Digital |
| Emitted Radio Power | -28.7 dBm (transmitter) |
| Power Consumption | 3mA (transmitter); 30mA (receiver) |
| Power (Hardware) | One 9-volt or 3-volt battery |
| Power (Handheld) | One 3-volt battery |
| Input Voltage | 12 - 24 VAC / VDC (receiver) |
| Contact Rating | 1.0 A @ 30 VDC 0.5 A @ 125 VAC 0.3 A @ 60 VDC |
| Operating Temperature | 14 – 131 °F (-10 – 55 °C) |
| Capacity | 100 programmed transmitters (per receiver) |
| Led Functionality | Receiver/Transmitter Learn: Red Relay Activity: Blue |
| Receiver Dimensions | 2 1/8" (W) x 1" (H) x 2 3/4"(D) |
| Norm Conformity | CE, FCC, IC |
