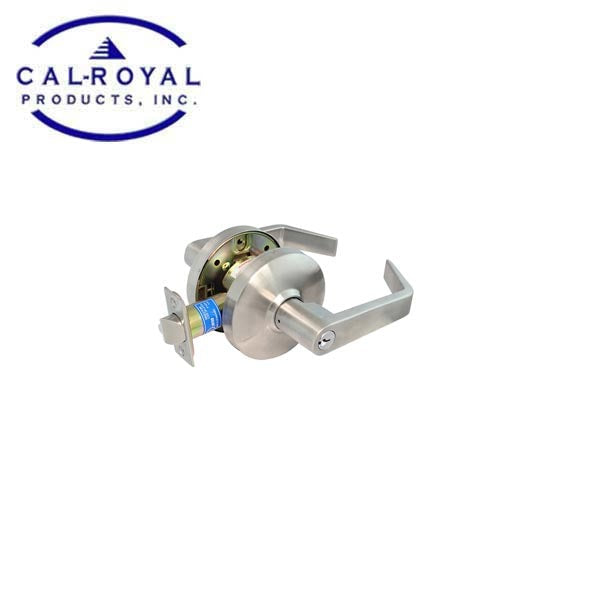

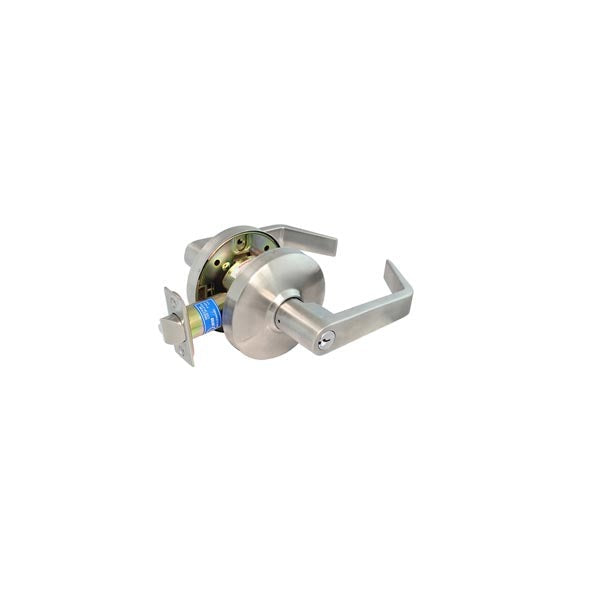

Cal-Royal - CGN00 - Cylindrical Leverset - Stainless Steel - Optional Function - Grade 1

$92.72 USD

~~$309.08 USD~~ $92.72 USD

Sale Sold out

Shipping calculated at checkout.

Function Entrance Classroom Storeroom Privacy

Cal-Royal's mission is to be the preeminent provider of superior construction services by consistently improving the quality of their products; to add value for their customers through innovation, foresight, integrity, and aggressive performance.

Features:

More information below

Specifications:

General	Full length 4 3/4" lever handle with 3/8" return on GN and SPA design. Rose Diameter 3 1/2". Key Removable outside lever for fast re-keying. Non-handed levers. Concealed mounting Screws
Clutch	Free turning handle in the lock position without retracting the latch, to deter breaking of handle.
Applications	For offices, schools, hospitals, apartments, hotel / motel, residential, commercial and public buildings.
Door Ranges	1 3/8" to 1 3/4" thickness.
ANSI Standards	Meets or exceeds ANSI / BHMA A156.2 Series 4000, Grade 1 requirements.
Latch Faceplate	2 1/4" x 1 1/8" for 2 3/4" backset.
Strikes	ASA 1 1/4" x 4 7/8"
Trim	Thru-bolted assembly through door with seperate spring cage for each lever.
Housing	Cold rolled steel and zinc dichromate finish for rust resistance with precision cast steel retractor. 2 1/8" diameter bore.
