Cal-Royal

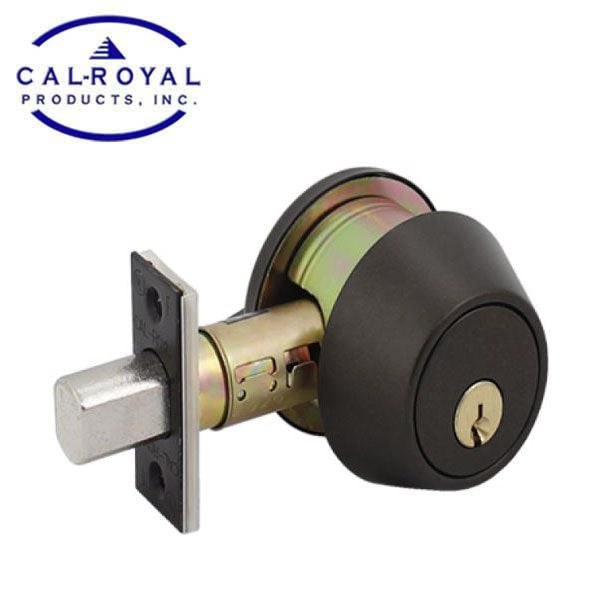

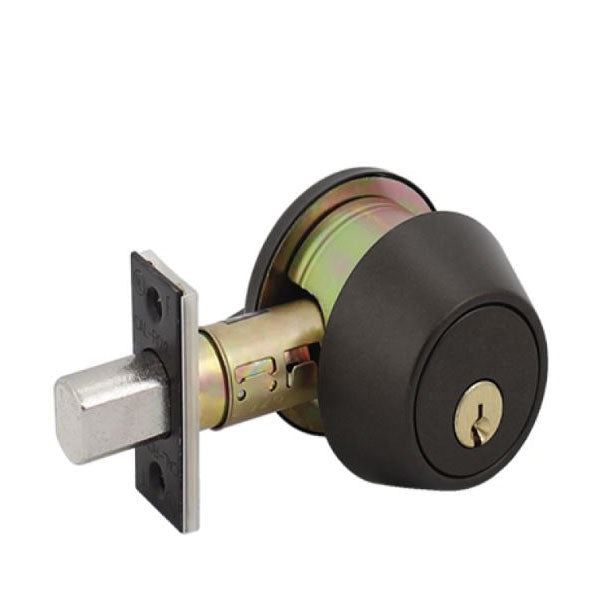

Cal-Royal - Maximum Security Deadbolt - Single Cylinder - Heavy Duty - Black Coated - Grade 2
Cal-Royal - Maximum Security Deadbolt - Single Cylinder - Heavy Duty - Black Coated - Grade 2
Regular price
$16.08 USD
Regular price
$64.33 USD
Sale price
$16.08 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Features
- Conforms with ANSI A 156.5 Series 4000, Standard Duty GRADE 2
- Lifetime Warranty
- Solid brass 6 pin “C” keyway cylinder, optional other keyways
- ADA (American Disability Act) Ergonomic Thumbturn
- Tapered cylinder guard and metal insert, turns free with any removal attempt
- Deadbolt thrown or retracted by key from outside or by inside turn unit.
- Bolt automatically deadlocks when fully thrown.
- Adjustable latch bolt
Specifications
| Handing | Non-Handed |
| Cylinder | Standard 6-pin solid brass “C” keyway |
| Door Thickness | 1-3/8" (35 mm) - 1-3/4 " (44.5 mm) |
| Backset | 2 3/8" (60 mm) |
| Deadbolt Faceplate | Standard 2 1/4" x 1" packed with 1/8" plastic filler to convert 1" face plate to 1 1/8" wide door preparations |
| Material | Wrought Brass or Stainless Steel |
| Strike | 1-1/8" x 2-3/4" square corner |
| Bore Diameter | 1” for latch, 2 ⅛” for lock housing. |
| Finish | US1 - Flat Black Coated |
| Certifications |
Grade 2 |
| Manufacturer Warranty | Limited lifetime mechanical warranty |
