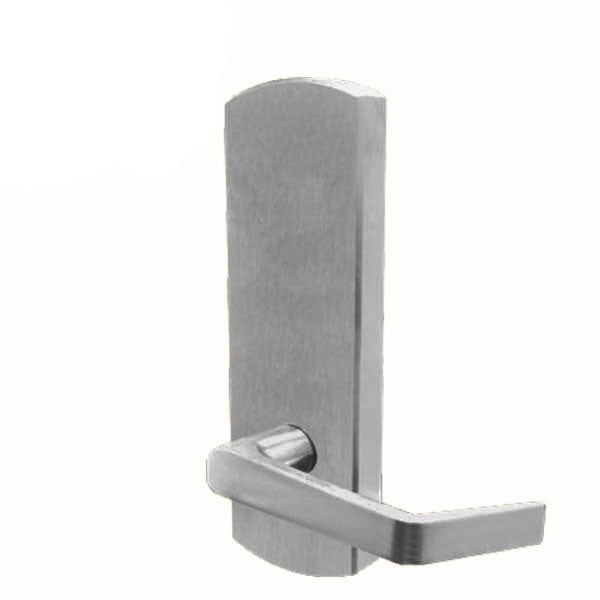

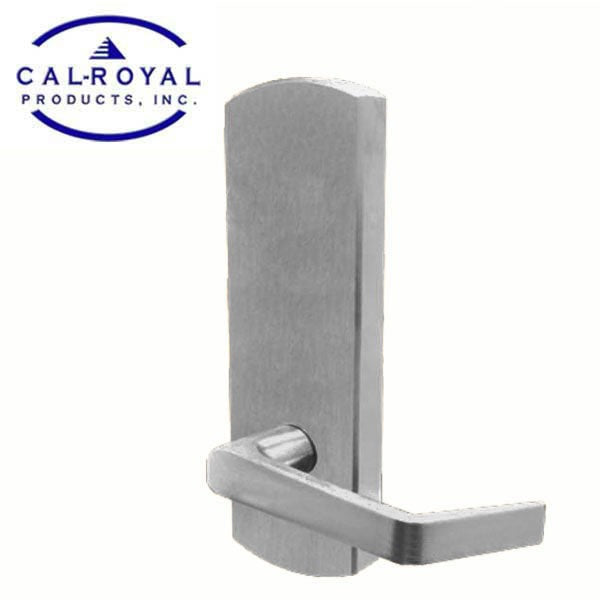

Cal-Royal - Rigid Lever Escutcheon - 2-3/4 " Backset - 7700 Series Exit Device Trim - Privacy - Satin Chrome - Grade 1
Cal-Royal - Rigid Lever Escutcheon - 2-3/4 " Backset - 7700 Series Exit Device Trim - Privacy - Satin Chrome - Grade 1
Regular price
$43.83 USD
Regular price
$175.32 USD
Sale price
$43.83 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Rigid Lever Escutcheon Trim is designed to work with 7700 series devices (not included). Exit Trim Only
Features
- Rigid, non-clutch mechanism
- Double heavy duty spring support to prevent sagging and enhance operation
- Grade 1, thru-bolted design. Non-handed design. Easily field reversible
- Hardened steel heavy duty tailpiece. Available for fire and non-fire rated rim and vertical rod exit devices
Specifications
| Application |
Escutcheon Lever Exit Trim Application For 7700 Series exit devices |
| Function | Privacy - Latch bolt by knobs, deadbolt by turn inside or emergency key outside. (ANSI 02) |
| Handing | Non Handed |
| Door Thickness | 1-3/4″ to 2-1/4″ |
| Backset | 2-3/4″ standard |
| Trim | Escutcheon Lever Exit Trim |
| Escutcheon | Forged brass, 2-5/16″ x 8-1/2″ |
| Lever |
4-3/4″ long |
| Finish | US26D - Satin Chrome |
| Certifications |
ANSI Grade 1 Certified, UL - UL 10C UL Listed 10C, ADA |
