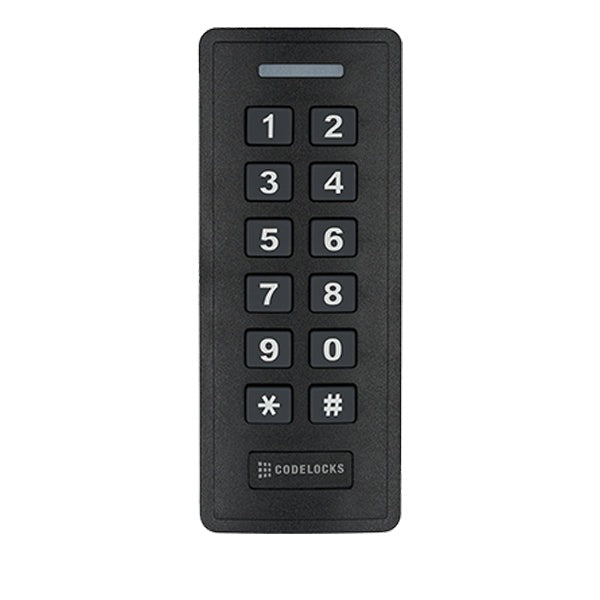

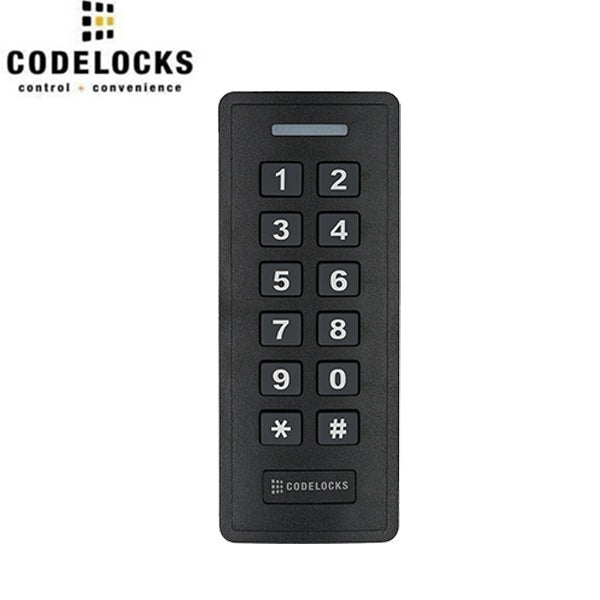

CodeLocks - AL03-DX - A3 Door Controllers - RFID Dual Standalone Door Controller - Black

CodeLocks - AL03-DX - A3 Door Controllers - RFID Dual Standalone Door Controller - Black

Regular price $46.70 USD
Regular price $186.78 USD Sale price $46.70 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

The A3 Dual MIFARE compatible door controller provides a compact, affordable proximity access control system allowing flexible entry for up to 600 users, including two Panic Clients.

Many smaller business buildings are still secured by traditional lock and key, meaning doors can be left unlocked all day leaving them open to possibilities of unauthorized persons gaining access, as well as keys going missing. The A3 Dual door controller offers you a keyless solution as a standalone product; an affordable access control system that does not require complex software purchases, external programmers or licensing costs.

Features:

  • 13.56MHz MIFARE compatible (ISO 14443 Type A) & 125KHz
  • Configurable penalty time
  • Anti-tamper sensor
  • LED status indicators
  • Surface mount
  • Alarm connection
  • Conforms to IP66 rating

Specifications:

    Brand
    Access by Codelocks
    Buttons 2 x 6
    Clients - Smart Cards Up to 600
    IP Rating
    IP66
    Keypad 12 individual buttons
    Finish
    Black
    Material
    Zinc Alloy
    Lock Dimensions 2" x 4 1⁄16" x 5⁄8"
    Orientation
    Vertical
    Suitable
    Internal, External
    Supported Cards
    MIFARE® Classic 13.56MHz 14443-3 Type A, MIFARE® DESFire® 13.56MHz ISO/IEC 14443 A 1-4, MIFARE Ultralite® 13.56MHz ISO/IEC 14443 A 1-3
    Voltage 12-18V DC
    Idle Current 35mA
    Working Current 100mA
    Inputs/Outputs Relay, Push-to-Exit, Alarm, Door Contact,
    Wiegand Input, Wiegand Output
    Wiegand Input/Output: 26-37 bits PIN Output: 4 bits, 8 bits (ASCII), 10 Digits Virtual Number
    Read Range 60mm (23 /8”)
    Temperature -40°C ~ 60°C (-40°F ~ 140°F)
    Humidity 10%RH ~ 98%RH
    Dimensions 49.5mm x 123mm x 22mm (2” x 47 /8” x 7 /8”)
    User Levels Master, User, Panic
    User Types
    Card, Code

    Downloads:
