CodeLocks - CL50 - Mechanical Lock - Light Duty - Optional Backset - Mortise Latch - Silver Gray - Fire Rated - Grade 2

$13.01 USD

~~$43.37 USD~~ $13.01 USD

Sale Sold out

Shipping calculated at checkout.

Backset 2 3/4" 2 3/8"

CDL-CL50-SG

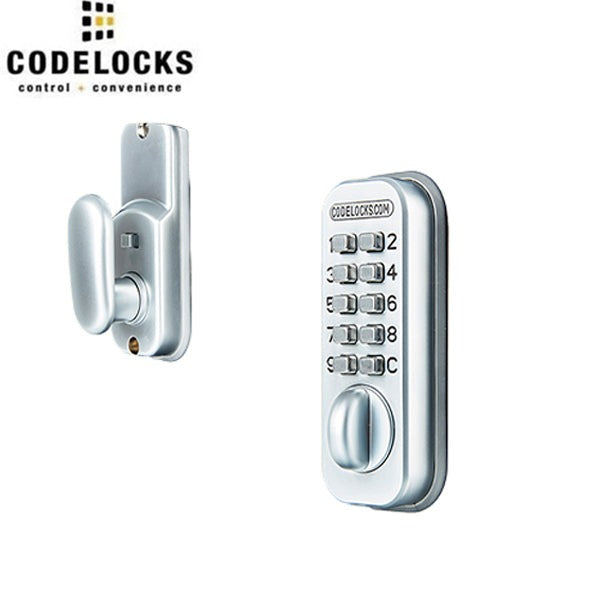

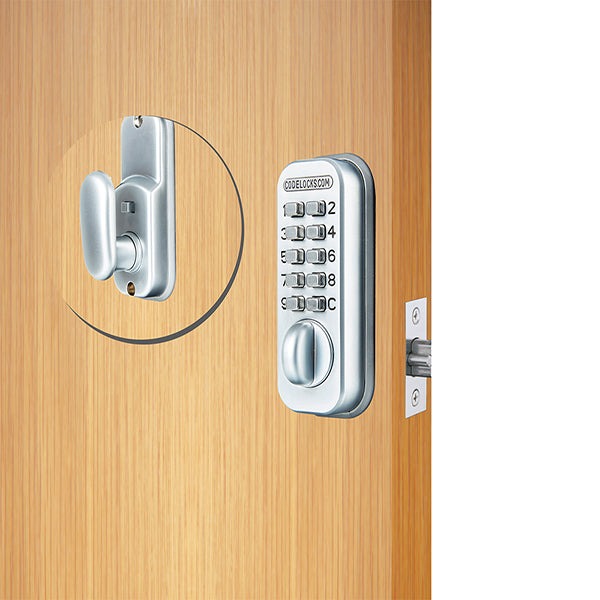

The CL50 is an easy-to-fit light duty mechanical push-button lock with tubular latch.

The CL50 is a mini mechanical lock, it’s compact size makes it suitable for low traffic, internal applications. The keyless lock provides immediate access with a 4-6 digit code, providing 500+ code combinations. The lock comes in a silver gray finish and installation is simple; drill one hole for the latch, one for the spindle and two holes for the fixing bolts. Control access to individual offices, store rooms, stationary cupboards, school arts and IT storage. The CL50 is extremely versatile.

Features

Simple convenient control
Easy to fit
Mortise Latch
Easy action internal lever
Hold open function allowing code free access (Passage Function)
Flat spring loaded spindle
Suitable for low traffic applications

Specifications

Brand	Codelocks
Buttons	2 x 5
Code Change Method	Tumblers (Off Door)
Codes	Single code storage - 511 non sequential combinations available
Door Thickness	1 ³⁄₈" - 2 ³⁄₈" (35mm - 60mm)
Finish	Silver Grey
Handed	Non-Handed - Locks will fit doors hung on the left or right
Keypad	10 Individual stainless steel buttons
Latch Type	2 ³⁄₄" or 2 3/8" Mortise Latch
Lock Material	Zinc Alloy
Orientation	Vertical
Spindle	Flat spring loaded spindle
Suitable For	Internal
User Types	Code
Fire Rated	3-hour UL 10C
Certifications	Grade 2 ANSI A156.2 / A156.25, UL/ULC
