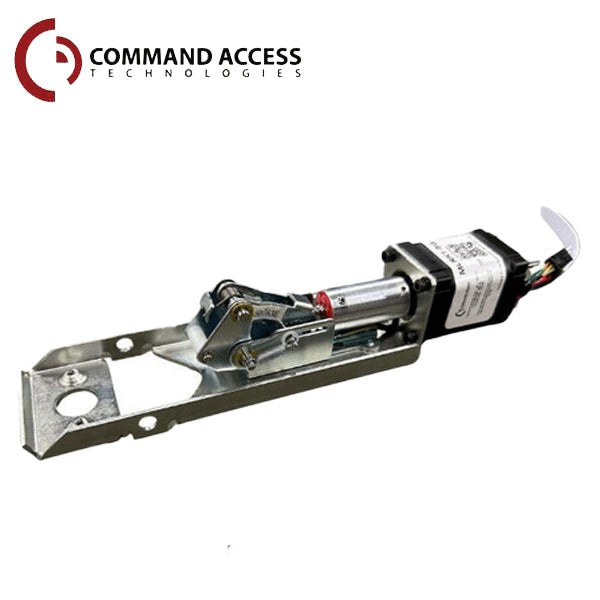

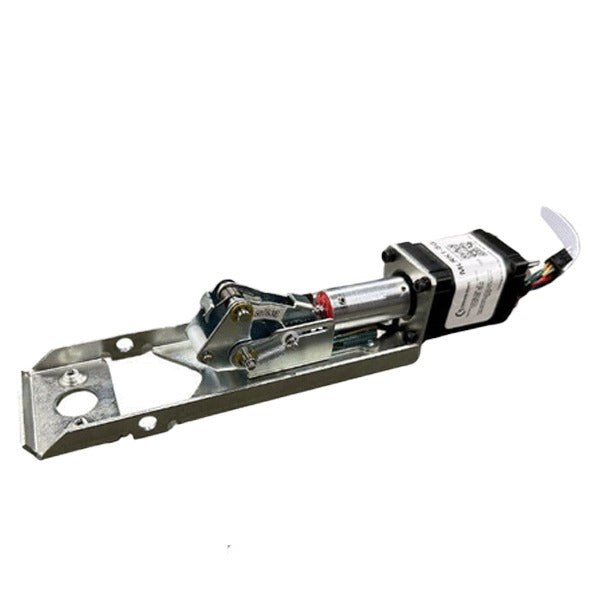

Command Access - Electrified Latch Retraction Kit - Sargent 80 Series Exit Device - 5LB Pressure Compliant - 24 to 28 VDC

ArchThe MLRK1-SGT is a practical and cost-effective way to convert a mechanical Sargent 80 series device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post-installation adjustment of the latch/latches. Last but not least, the SLP features an updated MM4S module with 2 different energy consumption settings from energy-conscious to high torque to get the tough jobs done!

Features:

• Easy installation - underneath the push pad for ultimate cutdown
• Fast, quiet, smooth
• True Electronic Dogging - Full push pad retraction
• Retrofits Sargent 80 series exit devices

• MM4S Smart Module: Onboard diagnostics with audible feedback for adjustment and power issues
• PTS: (Push to Set Technology) 5-second electronic adjustment for easy post-installation adjustment
• Up to 300’ wire run with 2-18ga wire
• Low Current Draw - Field switchable to “High Torque” mode
• 8’ cable with Quick Connect for MM4S module to easily connect to power
  supply lead




Specifications:

Downloads:

• Spec Sheet
• Instruction Sheet
