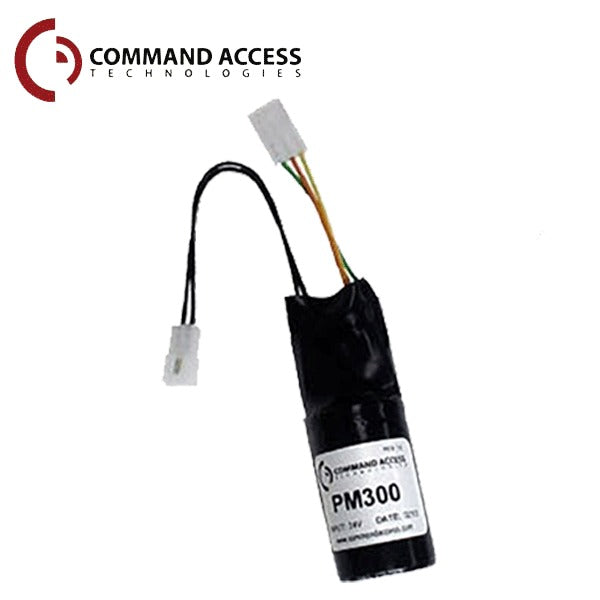

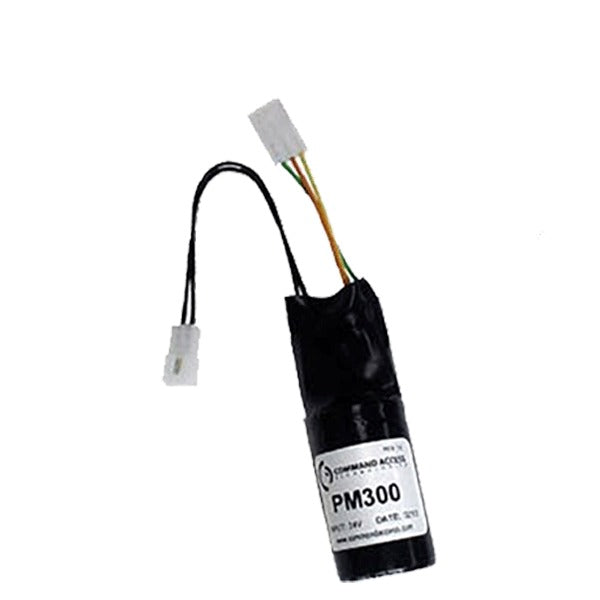

Command Access - PM300 - Power Booster Module - Solenoids - 18ga Wire - 22-30 VDC
Command Access - PM300 - Power Booster Module - Solenoids - 18ga Wire - 22-30 VDC
Regular price
$40.19 USD
Regular price
$160.78 USD
Sale price
$40.19 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The patented PM300 (taking over from all PM200 and PWM200 units) power booster module is an interface module that connects between the solenoid circuit of a latch-pullback exit device and the power supply.
Features:
- Allows a solenoid-driven exit device to be used with a lower-cost power supply
- Gives a needed boost to an anaemic power supply/exit device installation
- Allows a wire run from the power supply to the exit device of up to 700’ with 18/2 wire (see below)
- PM300 compatible with most 24VDC 1.5A or greater regulated power supplies.
- Built high output switch for added power when using Command Access power supplies*
- Solid-state design with high-quality components make for years of trouble-free operation
- Built-in safety feature that protects module for over-voltage
- Patented Technology
Specifications:
| Construction | Solid-state design with high-quality components make for years of trouble-free operation |
| PM300 Input Voltage Range: | 22-30 VDC Filtered & Regulated Voltage |
| Dimensions: | Tubular 3.5” L x 1.25” W |
| Standard Mode: | Fuse: Glass - 3.5 to 5A • Resetable - 1.0 Amp trip Relay: 5A or greater |
| High Output Mode: | Fuse: Resetable - 2.0Amp trip, 1.1Amp hold (minimum) Relay: 10A or greater |
| Maximum Wire Runs: | 700’ with 18ga wire • 1000’ with 16ga wire |
| Operating Voltage: | 22-30 VDC |
| Warranty: | 3-Year Manufacturer Warranty |
