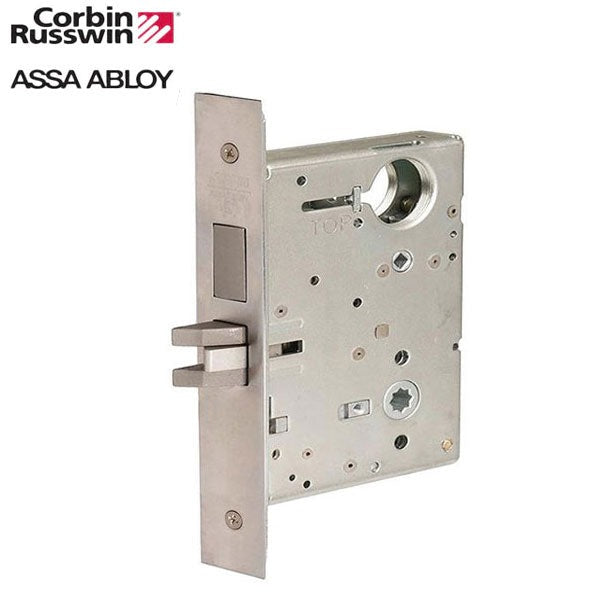

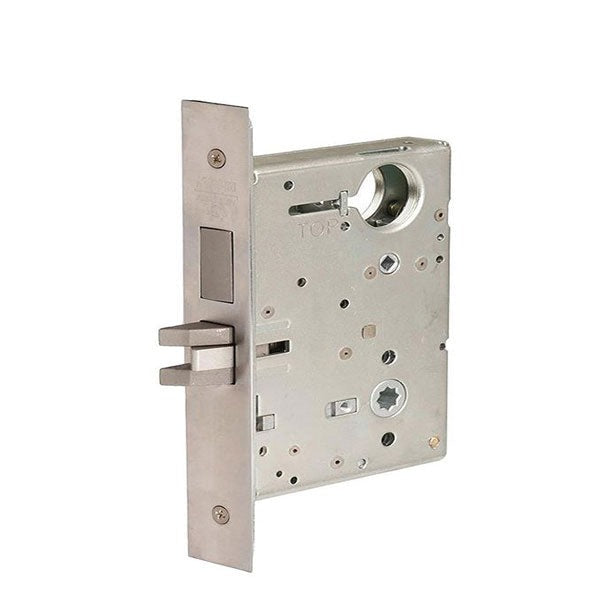

Corbin Russwin - ML2065 - Mortise Lock Body - Entrance / Dormitory - Fire Rated - Grade 1
Corbin Russwin - ML2065 - Mortise Lock Body - Entrance / Dormitory - Fire Rated - Grade 1
Couldn't load pickup availability
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features our patented Quick Reversible latchbolt, and a 1” stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
Features
- Patented Quick Reversible feature enables reversal of hands without disassembling the lock case
- Security trims provide a vandal-resistant barrier
- Multi-function lockbody, allowing 12 functions to be configured from one lockbody
- Can be used with new or existing Corbin Russwin key systems, including patented high-security Access 3 cylinders.
- Accepts cylinders of most other manufacturers.
- Provides life safety and security in a single door prep, saving the additional cost of a deadlock
- Through-bolted trim designs for proper alignment and increased security
Specifications
| Lock Function | ANSI F13 Entry/Dormitory lock - Latchbolt by grip either side, unless outside grip is locked by projection of dead bolt/Deadbolt thrown or retracted by key outside or by thumbturn grip inside/Inside grip simultaneously retracts latchbolt and deadbolt and unlocks outside grip/Inside grip always free. |
| Handing | Field Reversible |
| Door Thickness | 1 3/4" (44 mm) |
| Cylinder | No Cylinder - Lock Body Only |
| Backset | 2 3/4" (70 mm) |
| Lockcase | Heavy gauge steel, 5-7/8" x 4" x 15/16" |
| Latchbolt | 5/8" x 1" x 3/4" throw |
| Deadbolt | 19/32" x 1-1/4" x 1" throw |
| Material | Stainless Steel |
| Spacing | Knob/Lever to cylinder: 3-5/8" (92 mm); knob/lever to thumbturn: 2 -7/16" (62 mm) |
| Strike | 4-7/8" x 1-1/4" x 1-1/8 lip to center |
| Fire Rated | 3 Hours |
| Certifications |
ANSI/BHMI Certified A156.13, Grade 1, UL/cUL Listed |
| Manufacturer Warranty | 10 Year Limited |
