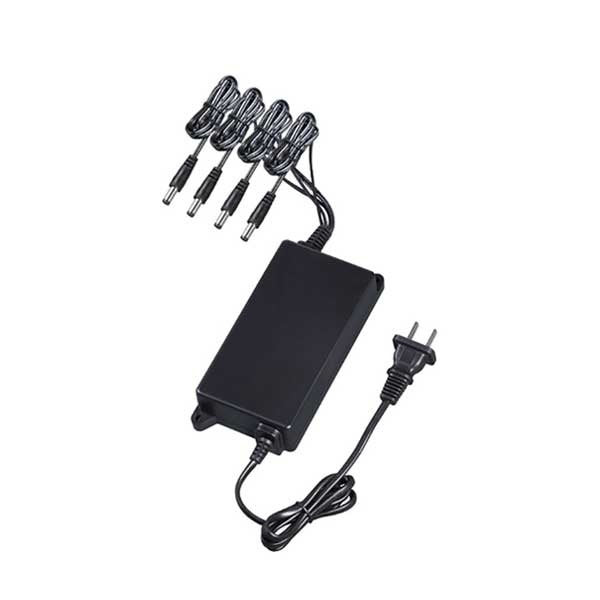

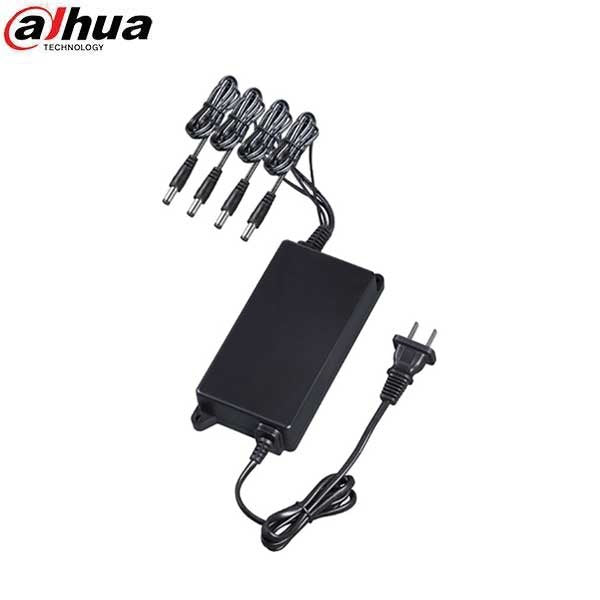

Dahua / 12 VDC, 0.7 A Power Adapter / DH-EUHA-12120-070D
Dahua / 12 VDC, 0.7 A Power Adapter / DH-EUHA-12120-070D
Regular price
$13.49 USD
Regular price
$44.98 USD
Sale price
$13.49 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
DH-EUHA-12120-070D
- 12 VDC, 0.7 A Power Adapter
- Four Independent Power Supply Ports
- Full Power Efficiency at -30 °C to +70° F (-22 °F to 158 °F)
- Accurate Over-current and Over-voltage Protection
- Two-year Warranty (for products sold through an authorized Dahua Dealer)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
Specifications
| Electrical | |
| Input | 100 VAC to 240 VAC, 50/60 Hz, 0.6 A |
| Output | 12 VDC (+7%, -3%), 0.7 A (±3%), each port |
| Environmental | |
| Operating Temperature | -30 °C to +70° F (-22 °F to 158 °F) |
| Operating Humidity | 90% |
| Physical Properties | |
| Dimensions (L x W x H) | 148.0 mm x 70.0 mm x 31.0 mm (5.83 in. x 2.76 in. x 1.22 in.) |
| Installation Mode | Plane Installation |
| Color | Black |
| Input Plug | 2-pin North American Plug |
| Cord Lengths | AC Cord: 500.0 mm (19.69 in.) DC Cord: 800.0 mm (31.50 in.) |
| Certifications | |
| Safety | UL, CE, FCC, CEC |
