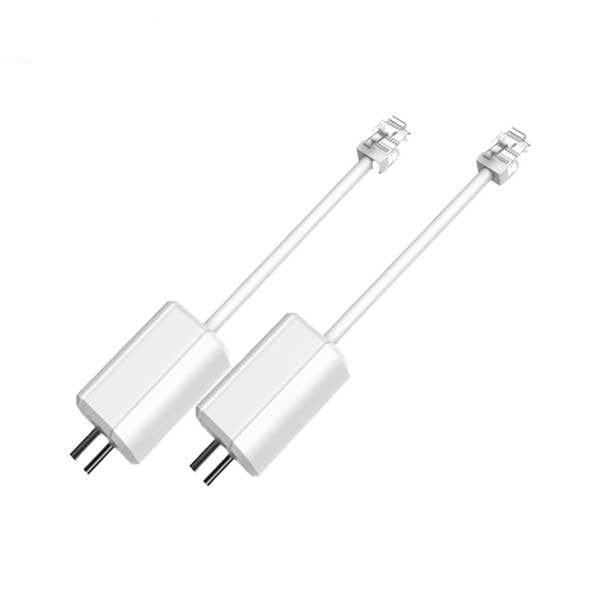

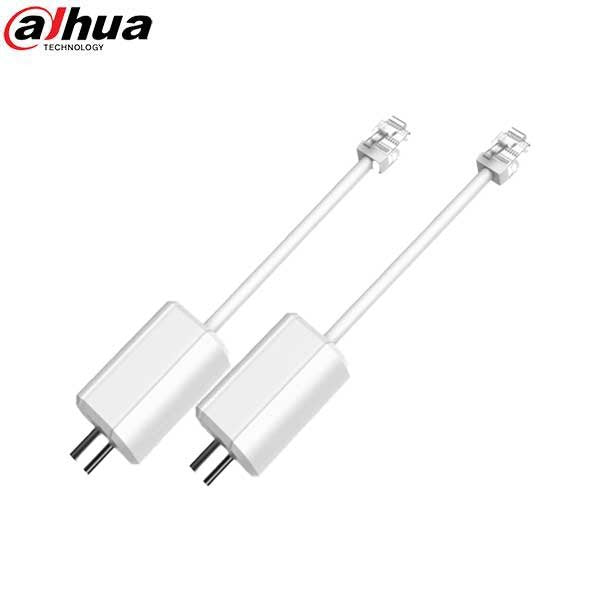

Dahua / EoC Passive Power Converter / Ethernet to Coaxial / 1000m Transmission / LR1002
Dahua / EoC Passive Power Converter / Ethernet to Coaxial / 1000m Transmission / LR1002
Regular price
$5.39 USD
Regular price
$17.98 USD
Sale price
$5.39 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
DH-LR1002
The LR1002 EoC Passive Converter converts a power signal between an Ethernet cable and a coaxial cable. The converter is a component of Dahua's innovative Enhanced Power over Ethernet (ePoE) system that transmits power and data over long distances without the need for repeaters or multiple switches.
Features
- Converts between CAT5E/CAT6 and Coaxial Cable Transmission
- Extends EoC Long-distance Transmission to non ePoE-enabled Edge or Head-end Devices.
- Supports PoE Transmission, up to 1000 m (3280 ft)
- Supports IEEE802.3af and IEEE8022.3at Power Supply Standards
- Supports the IEEE802.3 and IEEE802.3u Standards
- Supports MDI/MDX Self-adaptation
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
| Function Port | One (1) RJ45, 10/100 Mbps Base-TX One (1) BNC |
| Transmission Distance | 100 Mbps: 400 m (1312 ft) 10 Mbps: 1000 m (3280 ft) |
| Power Consumption | < 1 W |
| Transmission Bandwidth | RG59 Coaxial Cable: 400 m (1312 ft) at 100 Mbps, 1000 m (3280 ft) at 10 Mbps |
| PoE Protocol | Based on power inout from ePoE Switch or ePoE NVR |
| Network Standard | IEEE802.3, IEEE802.3u |
| Lightning Protection | Common Mode: 6 KV Differential Mode: 2 KV |
| Dimension | 2.20 in. x 1.06 in. x 0.83 in. |
