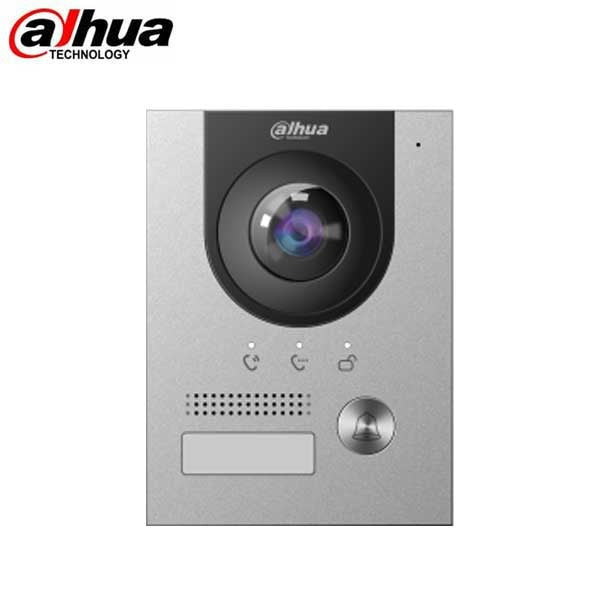

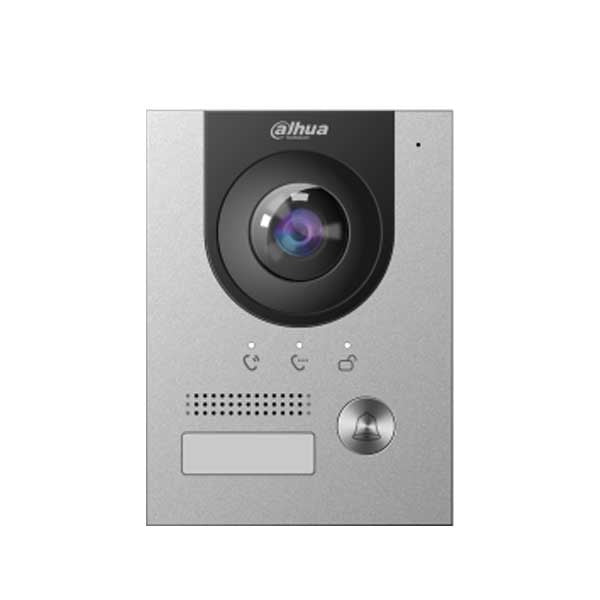

Dahua / IP / 2MP / Video Doorbell / Fixed / 1.9mm Lens / Outdoor / IP65 / IK07 / Active Alarm / Built-in Microphone & Speaker / 5 Year Warranty / DH-VTO2202F-P
Dahua / IP / 2MP / Video Doorbell / Fixed / 1.9mm Lens / Outdoor / IP65 / IK07 / Active Alarm / Built-in Microphone & Speaker / 5 Year Warranty / DH-VTO2202F-P
Regular price
$119.33 USD
Regular price
$397.78 USD
Sale price
$119.33 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
DH-VTO2202F-P
- 2MP CMOS camera
- Mechanical button
- Night vision & voice indicator
- PoE
- 160° angle of view
- Compatible with VTH5222CH-S1 and VTNS1006A-2
- Group call · Power supply by 2-wire
- Aluminium alloy plate
- IK07, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
- Surface mounted and flush mounted
- Compatible accessories: VTM114, VTM115, VTM05R
- Five-year Warranty (for products sold through authorized Dahua Dealers)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux Operation System |
| Basic | |
| Camera |
1/2.8" 2MP CMOS high definition low illumination colorful |
| Field of View | Horizontal: 160° Vertical: 82° Diagonal: 180° |
| Focal Length |
1.95 mm |
| WDR |
120 dB |
| Noise Reduction | Noise suppression and Echo cancellation |
| Video Compression | H.264 |
| Video Frame Rate | PAL: 25 fps NTSC: 30 fps |
| Video Bit Rate | 256 Kbps to 2 Mbps |
| Light Compensation | IR Supplement |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Audio Encoding | G.711u |
| Communication Methods |
Digital Communication |
| Unlock Mode | Remote Unlocking |
| Auto Snapshot | Support |
| Leave Videos or Text Messages | Support |
| Storage | Extended 64 G TF Card |
| WEB Configuration | Support |
| Real-Time Monitor | Support |
|
Port |
|
| RS-485 |
1 |
| Alarm Output | 1 |
| Power Output | 12V/100mA |
| Exit Button | 1 |
| Tamper Switch | 1 set |
| Door Status Detection | 1 set |
| Lock Control | 1 set |
| Eoc | 1 set |
| Network Interface | 1 |
| Alarm Parameter | |
| Tamper Alarm | Support |
| Door Sensor Timeout Alarm | Support |
| Alarm Input | Support |
| Alarm Output | Support |
|
General |
|
| Appearance color | Silver |
| Rated Current | 1A |
| Button | Mechanical Button |
| Power Supply Mode | 2-Wire Interface or PoE |
| Network Update |
Online Update |
| Installation |
Flush/surface mount |
| Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
| Protection | IK07; IP65 |
| Operating Temperature | –30°C to +60°C (–22°F to 140°F) |
| Operating Humidity | 10%–90% |
| Atmospheric Pressure |
86kPa–106kPa |
| Power Consumption | ≤ 12W |
|
Certifications |
|
| Certifications | CE; FCC; UL |
