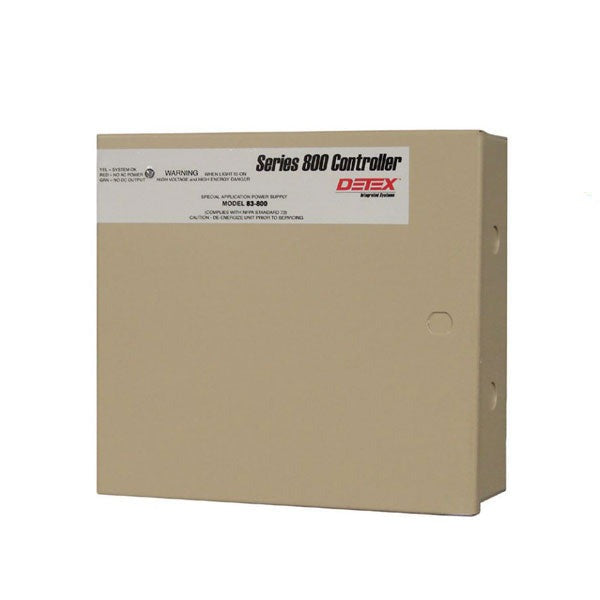

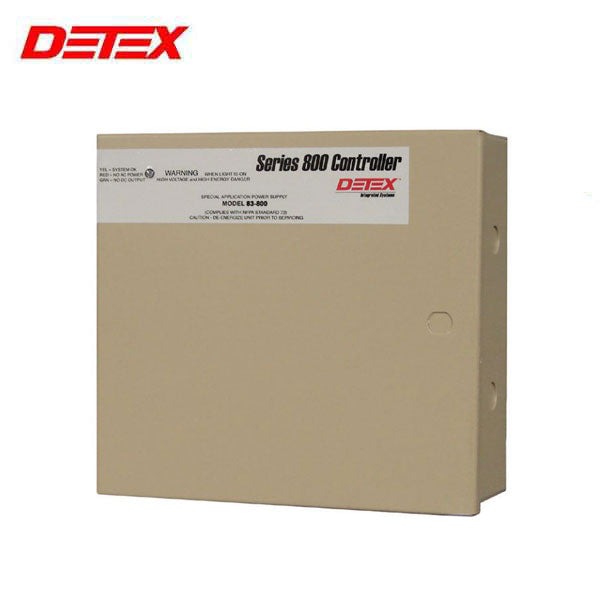

Detex - DTX-83-800 - Power Control System - Double Doors - 120VAC/24VDC

The Detex 83-800 is logic and power supply that converts 120VAC into regulated and filtered 24VDC, providing a secure, consistent, power feed to various electrified door hardware accessories, primarily access control components, such as Detex latch retraction exit devices

• Filtered and regulated 24VDC power protects the circuitry from stray power surges and spikes
• The Series 800 products have been engineered to provide superior operation through design integration with all Detex electric latch retraction options
• 2 AMP continuous, controlling 2 Detex latch retraction (ER) devices for 2 independent doors

• Battery charging circuit included standard (batteries sold separately)
• Design provides enough power to cycle Detex latch retraction motor, one time, even if power is lost while attempting to open the door and gain access
• Standard output used to signal automatic door operations
