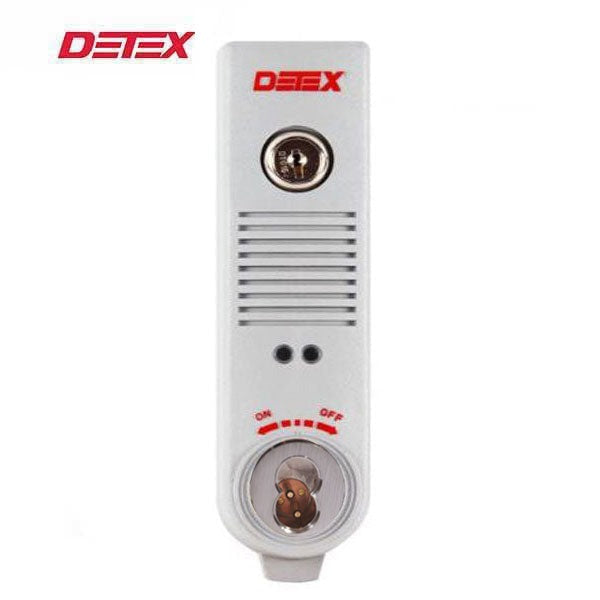

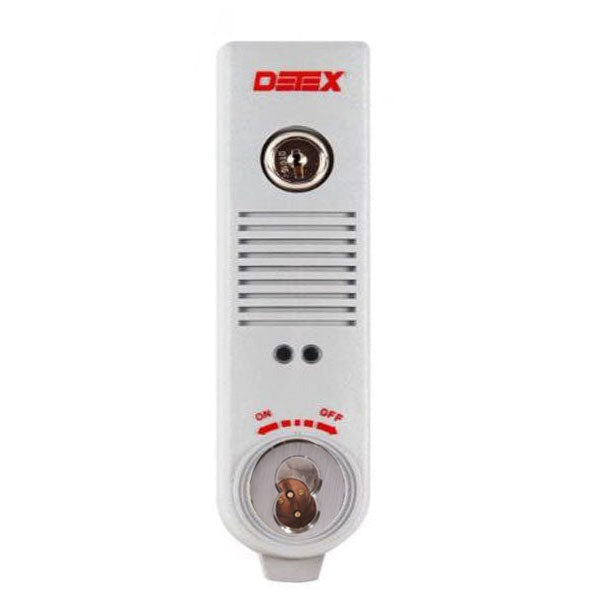

Detex - EAX-500 - Exit Alarm - Interchangeable Core - 7 Pin - 9VDC - Gray

This Detex EAX-500 is an exit alarm for use on applications where an audible means of alerting authority of an unwarranted exit is necessary. The alarm can only be silenced by using a key.

Features

• IC7 - 7 pin interchangeable core housing, pre-installed at factory (Compatible with most standard 7 pin IC format cores)
• Secure, tamper resistant housing
• Door or wall mount
• Patented plastic template allows for foolproof alignment of internal magnetic door contact and accurate installation
• Tapered cover allows for installation on narrow stile doors
• Intelligent circuit senses the external magnet location automatically and sets the correct door handing
• Patented cam assembly automatically adjusts for different sizes of cylinders without use of spacers
• Alarm can only be silenced by proper control key
• 100 dB piezo alarm
• LED visual and audible arming indicators
• Modern graphics on cover to demonstrate key rotation and operation
• 9VDC battery operated with Low Battery Alert
• Key required to reset alarm
• Field selectable 2-minute auto rearm, if desired
• Field selectable status indicators, if desired

Features

Style	Exit Alarm
Alarm	100dB Piezo Alarm
Battery	9V battery
Mounting	Surface Mount
Cylinder	7-Pin IC Cylinder (Core not included)
Finish	Gray

Downloads:

• Installation Instructions
• Catalog
