Falcon

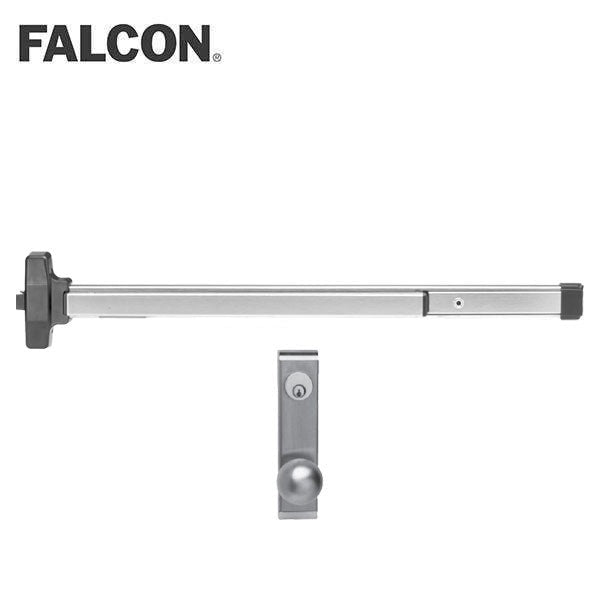

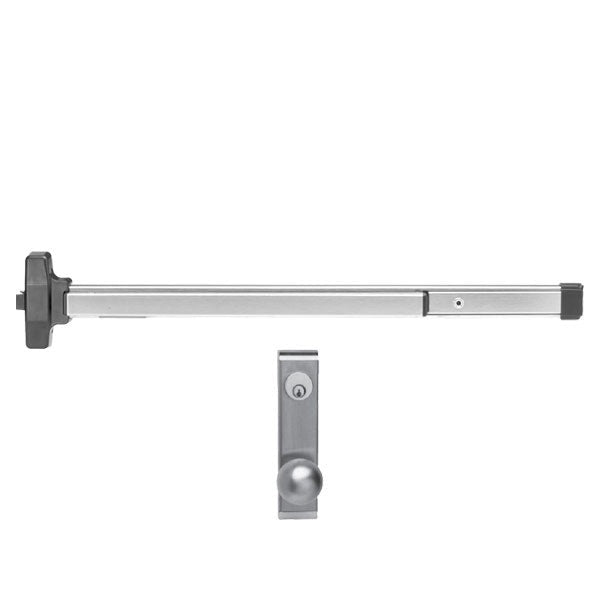

Falcon - 19-R-K - Rim Type Pushpad Exit Device - Classroom Knob - 36" - Entrance By Knob - US32D - Satin Stainless Steel
Falcon - 19-R-K - Rim Type Pushpad Exit Device - Classroom Knob - 36" - Entrance By Knob - US32D - Satin Stainless Steel
Regular price
$131.89 USD
Regular price
$527.57 USD
Sale price
$131.89 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Falcon 19-R-K Series rim device that delivers superior panic hardware with modern touchbar styling. This non-handed device covers a 161 cutout and may be used on 1 3⁄4" narrow stile aluminum doors.
| Finish | US32 Satin Stainless Steel |
| Physical Appearance | Touch Bar and Knob |
| Handing | Non-Handed |
| Doors | 1 3⁄4" thick metal or wood doors |
| Fasteners | All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side |
| End Caps | Black plastic end caps |
| Projection | 2 1 ⁄2" in neutral position, 1 7 ⁄8" in dogged position. Pushbar height is 1 3 ⁄4". |
| Stile | 1 3⁄4" minimum |
| Device Type | Rim Type Pushpad Exit Device |
| Device Length | 36 In. |
| Dogging Options | Hex Key Dogging |
| Strikes: | Standard - F570. |
| Latchbolt | Stainless steel, 3 ⁄4" throw dead locking |
| Functions | Entrance by knob, key locks or unlocks |
| Standards |
Certified ANSI A156.3 grade 1 standards |
| Warranty | 10-year manufacturer warranty |
| Manufacturer | Falcon |
Download:
Please Note: Bulk price rates are available! Call us at 1-800-878-6604.
