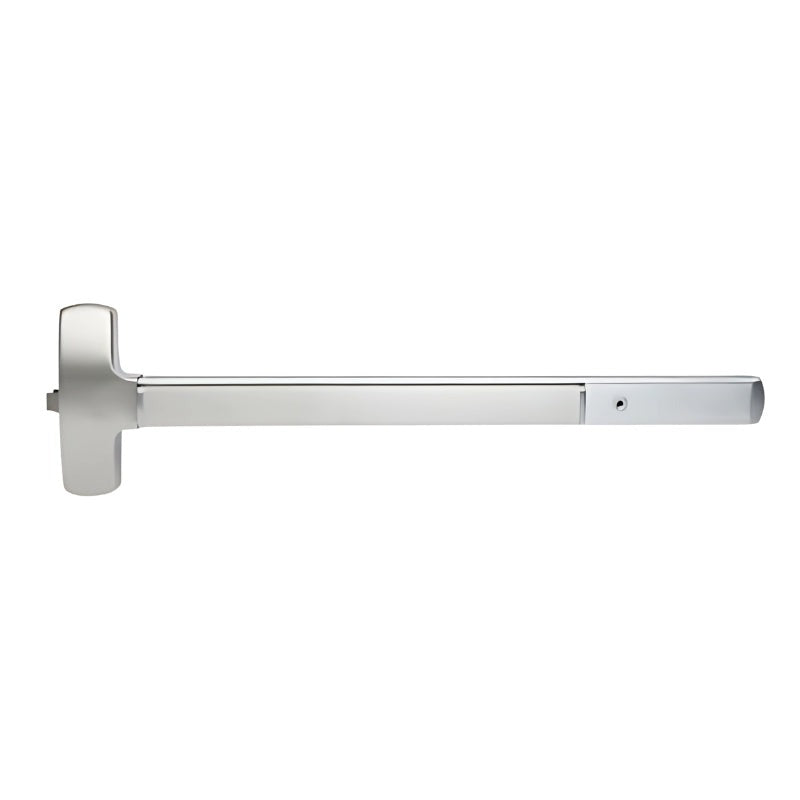

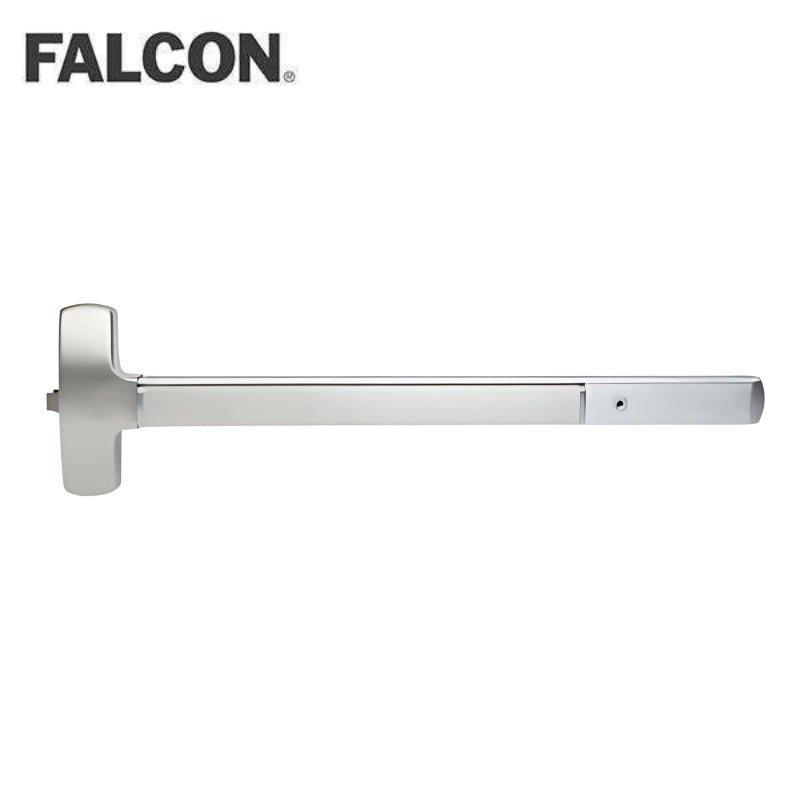

Falcon - 25-R-EO - Rim Exit Device - Exit Only - 48" - Hex Dogging - 299 Strike - 626/US26D Satin Chrome Finish - Grade 1

The Falcon 25-R‑EO is a Grade 1, exit‑only, rim-type exit device designed for 48-inch doors, ideal for high‑traffic commercial environments. Constructed with an extruded aluminum body and a stainless steel push pad, it features a refined satin chrome (US26D) finish. With no exposed screws or rivets, its sleek touch-bar design enhances security and aesthetics. The device includes a half-turn hex dogging mechanism and a standard 299 rim strike. Electrical integration is also possible—for motorized latch retraction, trim options, monitoring, delayed egress, and exit alarm systems.

Features:

• 645 mm (48″) width – suitable for wide commercial doors
• Non‑handed architecture simplifies installation on both left and right‑handed doors
• Durable construction – extruded aluminum case with stainless steel push pad cover, designed for high‑impact resistance
• Clean design – concealed mounting screws, flush end caps, and narrow‑stile center case ideal for storefront doors
• Hex dogging – half‑turn mechanism eliminates wear-prone threaded parts
• Stainless steel latchbolt – ¾″ throw, dead‑locking for enhanced security
• Electrical readiness – suitable for motorized latch retraction, trim interface, security monitoring, delayed egress, and exit alarms
• Standards compliance – ANSI A156.3‑2001 Grade 1 certified
