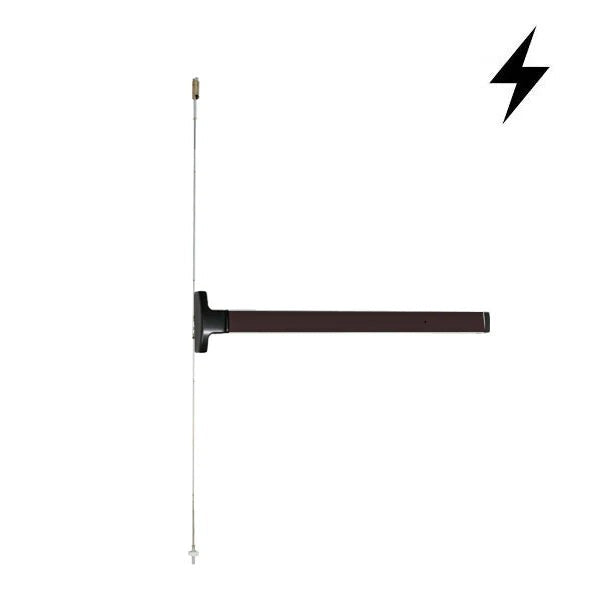

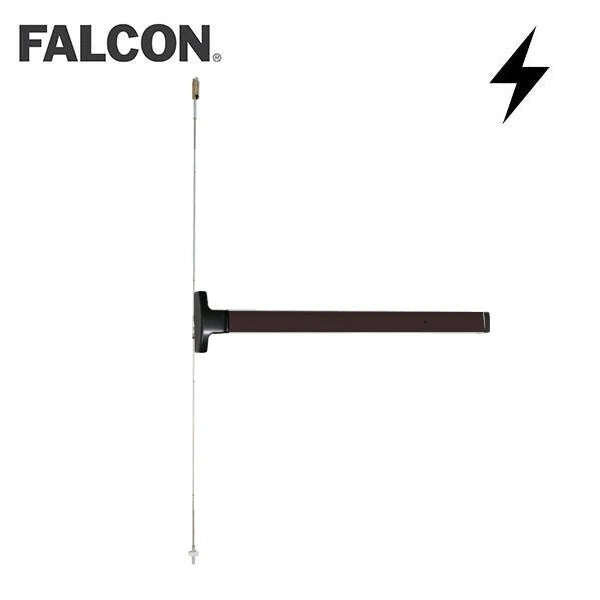

Falcon - EL1690EO - Concealed Vertical Rod Touchbar Exit Device - Electric Latch Retraction - 48" - 313 - Dark Bronze Anodized Aluminum - Non-Handed - Grade 1
Falcon - EL1690EO - Concealed Vertical Rod Touchbar Exit Device - Electric Latch Retraction - 48" - 313 - Dark Bronze Anodized Aluminum - Non-Handed - Grade 1
Regular price
$237.93 USD
Regular price
$793.10 USD
Sale price
$237.93 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The design of the 1690 is ideal for demanding, moderate-traffic applications. The vertical rods and latch mechanisms are concealed in the vertical door stile, ensuring trouble-free operation. Cast metal cover plates and end caps hold up to rigorous use. A quick, single-point dogging feature in the housing deactivates the device, permitting unrestricted traffic flow. The 1690 may also be used to retrofit a 1990 Series crossbar device.
Specifications:
| Hand | Field Reversible, Non-Handed |
| Functions | Exit Only, No outside trim |
| Finish | DC13/ 313 Dark Bronze Anodized Aluminum |
| Strike | PB48 top |
| Latches | Electric Latch Retraction |
| Dogging | Hex Key dogging standard, except EL where must use hold back feature on outside cylinder |
| Device Length | 48 in |
| Includes Trim | No |
| Physical Appearance | Narrow Stile Pushpad |
| Fire Rated | No |
| Device Type | Concealed Vertical Rod |
| Grade | Grade 1 |
| Door Thickness | 1-3/4" |
| Minimum Stile Size | 1-3/4" |
| Door Material | Metal |
| Fasteners | All machine screw mounting. Device mounting fasteners are concealed, and latch fasteners are exposed to the egress side. |
| End Caps | Black Powder-Coated metal end caps |
| ANSI | Certified ANSI A156.3 grade 1 standards |
| Hurricane | 1690 devices are used for hurricane-rated door openings. |
| Vertical Rods | 7' standard |
| Warranty | 10 years manufacturer's warranty |
