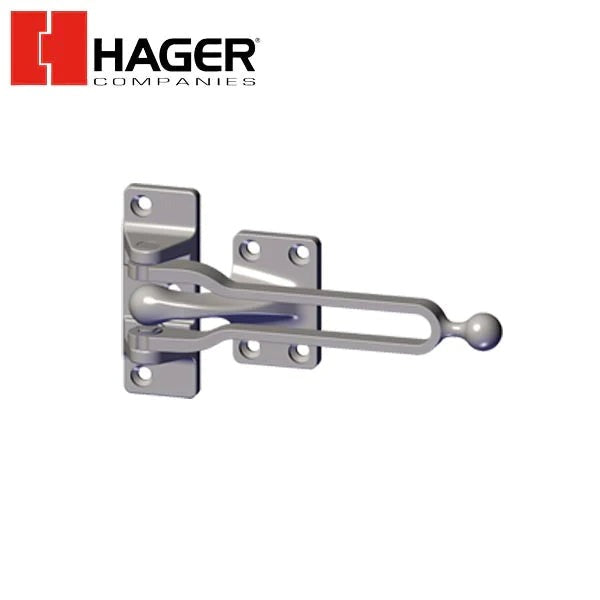

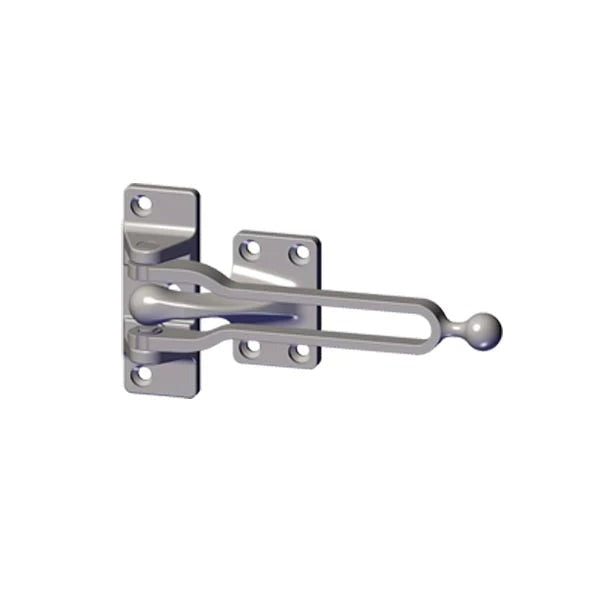

Hager - 274D - Door Guard - Satin Chrome

Hager - 274D - Door Guard - Satin Chrome

$6.63 USD
$26.52 USD $6.63 USD
Sale Sold out
Shipping calculated at checkout.


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Certifications
    • Meets ANSI A156.16 for L13041
    Fasteners
    • Four #6 x 3/4" OPHWS, Three #6 x 1-1/2" OPHWS, Seven #6-32 x 1/2" OPHMS
    Arm
    • Arm Bracket Base: 15/16" x 2-5/8" (24 mm x 67 mm)
    Material
    • Brass
    Notes
    • Arm length 4-1/2" (114 mm)
    • Includes door guard protective plate 274B
    • Permits door to be slightly opened to allow viewing
    • Hinged bar allows the door guard to be positioned 180 degrees away from the door when not in use
    • 3/32" (2 mm) shims available, see 274C
    Product Description
    • Door Guard
