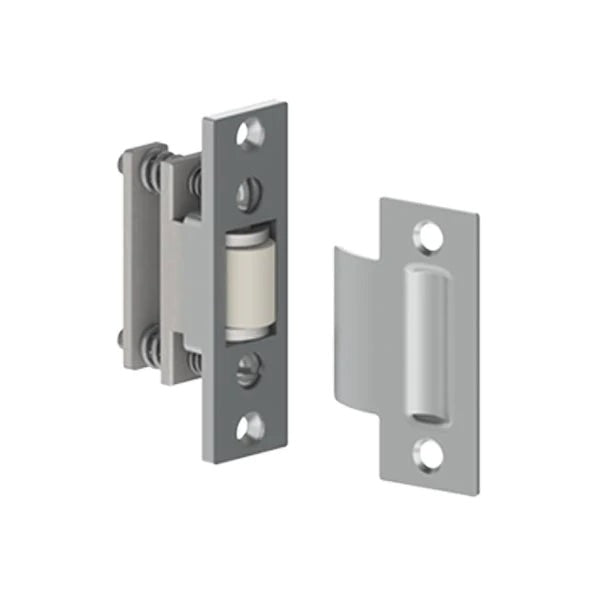

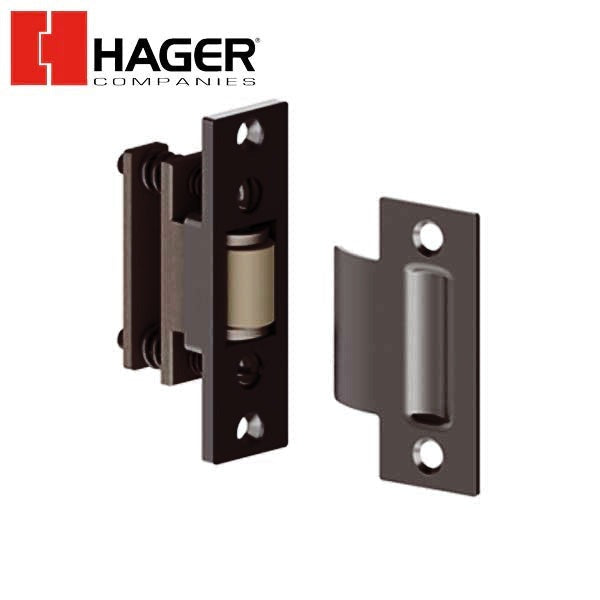

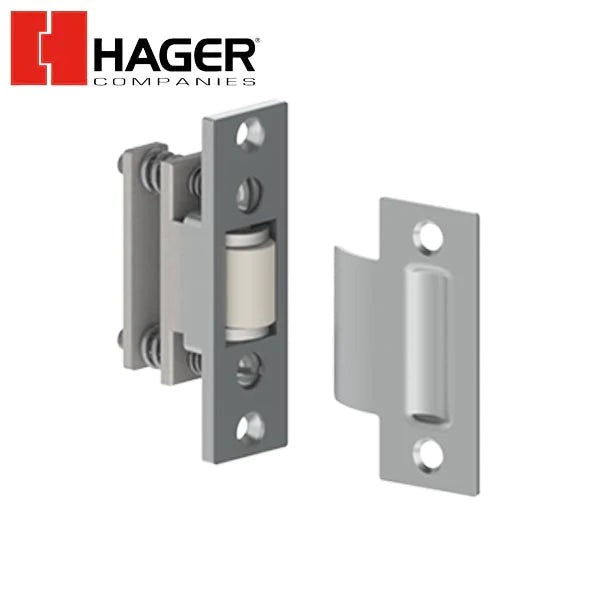

Hager - 318D - Roller Latch with Tee Strike - Optional Finish

Hager - 318D - Roller Latch with Tee Strike - Optional Finish

$9.51 USD
$38.04 USD $9.51 USD
Sale Sold out
Shipping calculated at checkout.
Finish


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Certifications
    • Meets ANSI A156.16 for E09091
    Fasteners
    • Two #8 x 1" FPHWS, two #8 - 32 x 3/4" FPHMS, two #10 x 1-1/2" FPHWS
    Faceplate
    • Roller faceplate 1" x 3-3/8" (25 mm x 86 mm)
    Material
    • Brass
    Notes
    • Adjustable spring tension with nylon roller
    • Projection of roller is easily adjusted using screws on faceplate
    • Max projection of the roller is 3/8" (9.5 mm) allowing for variance in door and frame clearance
    Product Description
    • Roller Latch with Tee Strike
    Strikes
    • 1-1/8" x 2-3/4" (29 mm x 70 mm). Strike gauge .171" (4.3 mm)
