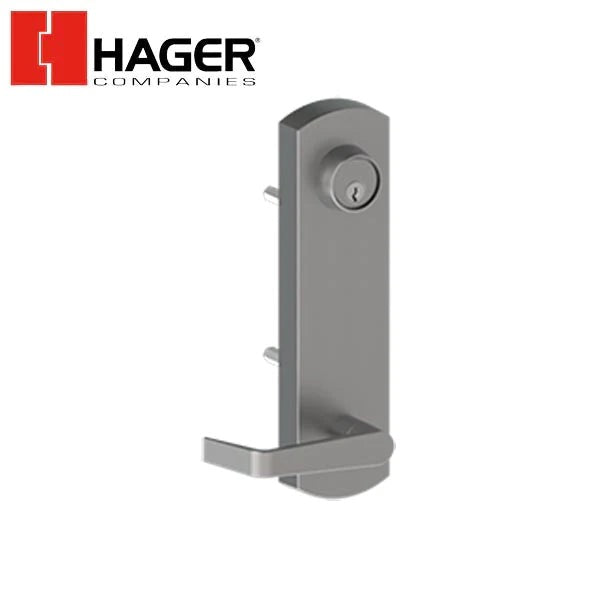

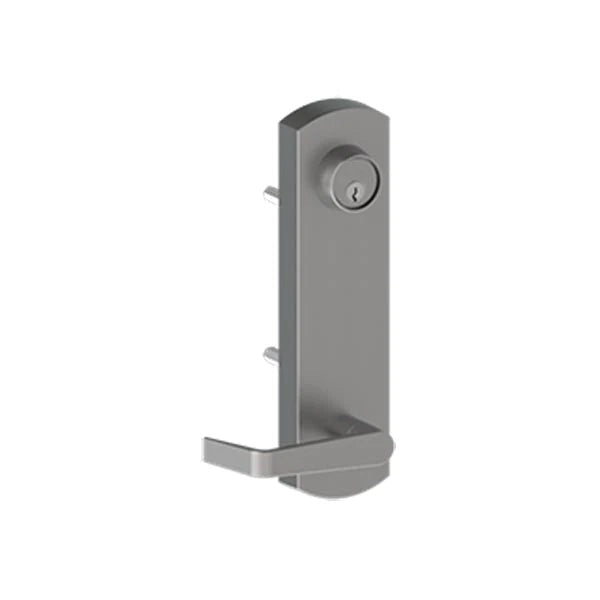

Hager - 45CE - Escutcheon Lever - Mortise Cylinder - Satin Chrome - Optional Lever

Hager - 45CE - Escutcheon Lever - Mortise Cylinder - Satin Chrome - Optional Lever

$135.08 USD
$540.34 USD $135.08 USD
Sale Sold out
Shipping calculated at checkout.
Lever


Since Hager’s inception in 1849 their Hager brand commercial hinges have always been made right here in America. And it’s not just hinges. The bulk of Hager’s traditional door hardware lines are American-made.


More Details Below:


    Specs

    Certifications
    • ANSI/BHMA A156.3-2014 Grade 1
    • Complies with ANSI A117.1 for accessible buildings and facilities
    Cylinders/Cores
    • Requires a 3902 mortise cylinder with standard cam, sold separately
    Escutcheons
    • 2-3/4'' x 10-3/4'' (70mm x 273mm)
    Functions
    • 08 - Key locks or unlocks lever
    Lever Options
    • Archer, August, Charles, Johnston, Joshua, Louis, Warren, William, Withnell (lever is free-wheeling when locked)
    Projection
    • 2-13/16" (71mm) for Archer; 2-7/8" (73mm) for August; 3-3/8" (86mm) for Charles; 3-1/16" (78mm) for Johnston; 3-17/32" (90mm) for Joshua; 3-3/16" (81mm) for Louis; 3-13/32" (87mm) for Warren; 3-1/2" (89mm) for William; 2-11/16" (68mm) for Withnell
    Warranty
    • Lifetime


    Downloads:
