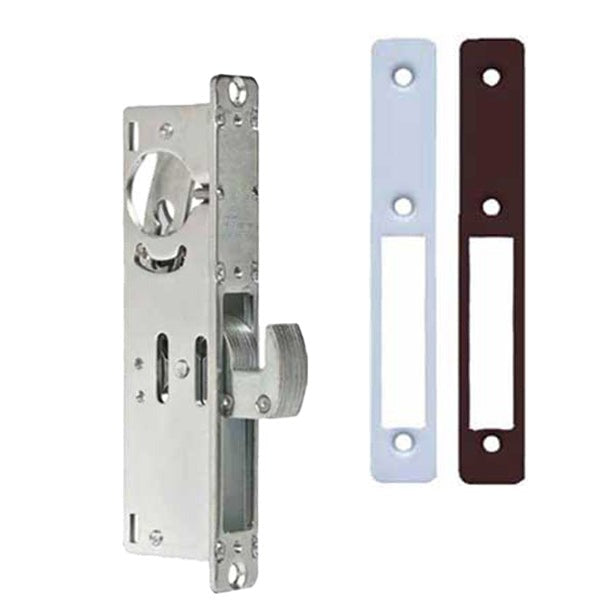

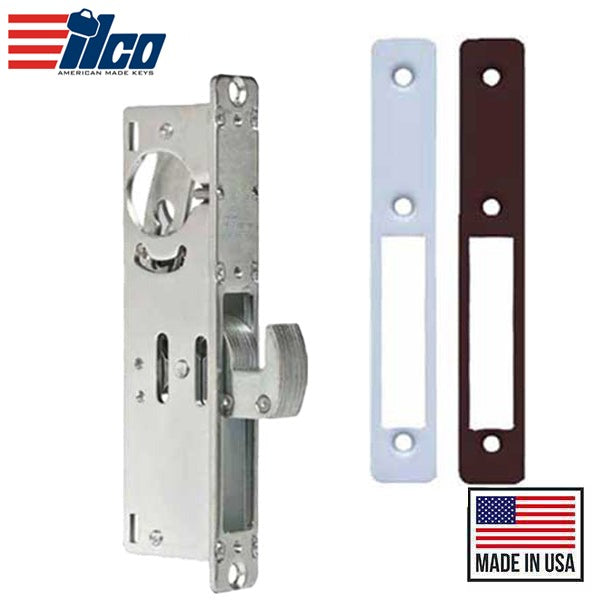

Ilco - Deadbolt Mortise Lock Body - Hookbolt - 1-1/8" Backset - 628/313 - Clear/Dark Bronze Faceplates - Grade 1

185 Series Deadbolt Mortise Lock Body - Hookbolt
-For Aluminum Stile Doors
-Five-ply laminated steel bolt with concealed hardened steel pin provides
maximum security on single leaf doors
-Cycle testing exceeds ANSI Grade 1 standards
-Steel case with corrosion-resistant plating
-Accepts standard 1 5/32" (29.36 mm) Zinc or Brass threaded mortise cylinder (Cylinder not Included)
-Interchangeable with 451/452 Series Deadlatches

• Backset: 1 1/8" (28.58 mm)

• Throw: 13/16" (20.6 mm)
• Bolt Dimensions: 5/8"W x 1 3/8"L (15.88 mm x 34.9 mm)
• Handing: No Handing
• Finish: Clear/Dark Bronze

Dimensions
