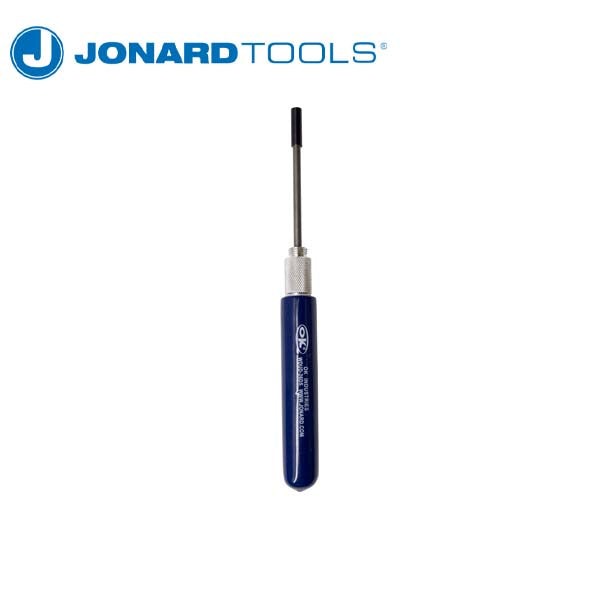

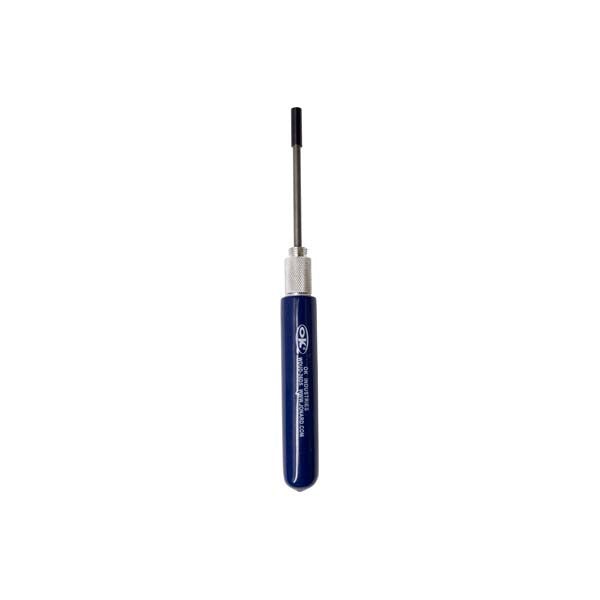

Jonard Tools - DSL Wrap and Unwrap Tool
Jonard Tools - DSL Wrap and Unwrap Tool
Regular price
$37.78 USD
Regular price
$125.95 USD
Sale price
$37.78 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Designed to wrap or unwrap DSL (Digital Subscriber Line) connections, this hand wrap tool is perfect for occasional wire wraps or where power wire-wrapping tools are not practical. This hand wrap tool also features the following:
- Switch from wrapping to unwrapping quickly by changing the cap from one end to the other
- Insulated handle for dielectric protection
- Wraps 26 AWG (0.40 mm) wire and unwraps 20-26 AWG (0.81 mm-0.40 mm) wire
Specifications
| Wrap Type |
Regular |
|---|---|
| Wrap Wire Gauge |
26 AWG (0.40 mm) |
| Wrap Terminal Hole Diameter |
0.075" (1.90 mm) |
| Wrap Terminal Hole Depth |
1" (25.40 mm) |
| Wrap Outside Diameter |
0.218" (5.54 mm) |
| Wrap Post Size |
0.045" (1.14 mm) |
| Unwrap Wire Gauge |
20-26 AWG (0.81 mm-0.40 mm) |
| Unwrap Terminal Hole Diameter |
0.070" (1.77 mm) |
| Unwrap Terminal Hole Depth |
1" (25.40 mm) |
| Unwrap Outside Diameter |
0.156" (3.96 mm) |
| Handle Type |
Insulated |
| Dimensions | 7.06 in x 0.62 in x 0.62 in (17.94 cm x 1.56 cm x 1.56 cm) |
| Weight | 0.09 lb (42.676 g) |
| UPC # | 811490013032 |
