Jonard Tools - Modified Wire Wrapping Bit - 28 AWG
Jonard Tools - Modified Wire Wrapping Bit - 28 AWG
Regular price
$20.98 USD
Regular price
$69.95 USD
Sale price
$20.98 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

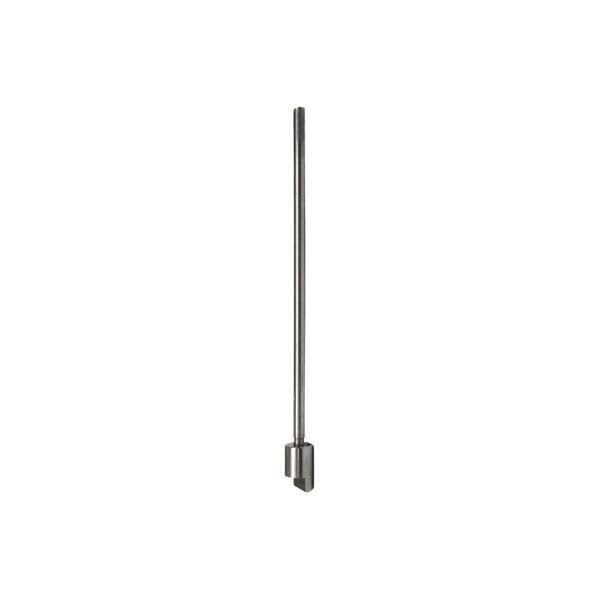

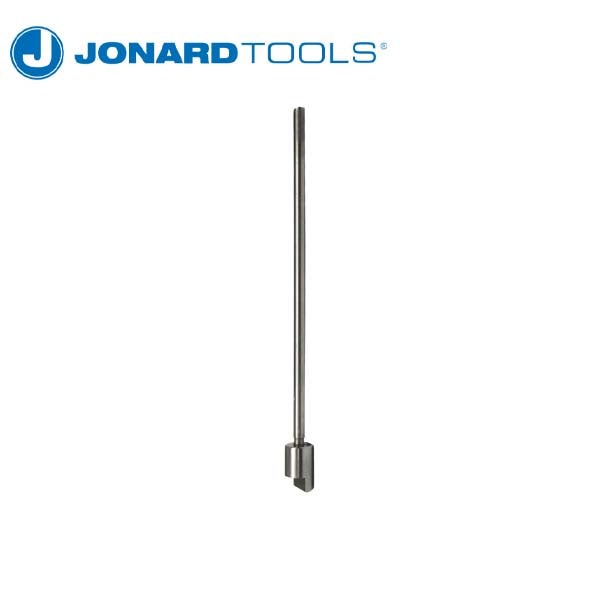

Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 28 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
- Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap
Compatible Wrap Sleeve Part #: P3032 and P3032INS
Specifications
| Sleeve Part No. | P3032 and P3032INS (sold separately) |
|---|---|
| Wrap Function | Wrap |
| Wrap Type | Modified |
| Wire Gauge | 28 AWG (0.32 mm) |
| Maximum Insulation Diameter | 0.030" (0.76 mm) |
| Minimum Terminal Diagonal | 0.031" (0.79 mm) |
| Maximum Terminal Diagonal | 0.035" (0.89 mm) |
| Terminal Hole Depth | 0.75" (19.05 mm) |
| Terminal Hole Diameter | 0.036" (0.91 mm) |
| Effective Radius | 0.066" (1.67 mm) |
| Wrap Post Size | 0.025 (0.63 mm) |
| Dimensions | 3.11 in x 0.23 in x 0.22 in (7.9 cm x 0.59 cm x 0.55 cm) |
| Weight | 0.01 lb (3.632 g) |
| UPC # | 811490013506 |
