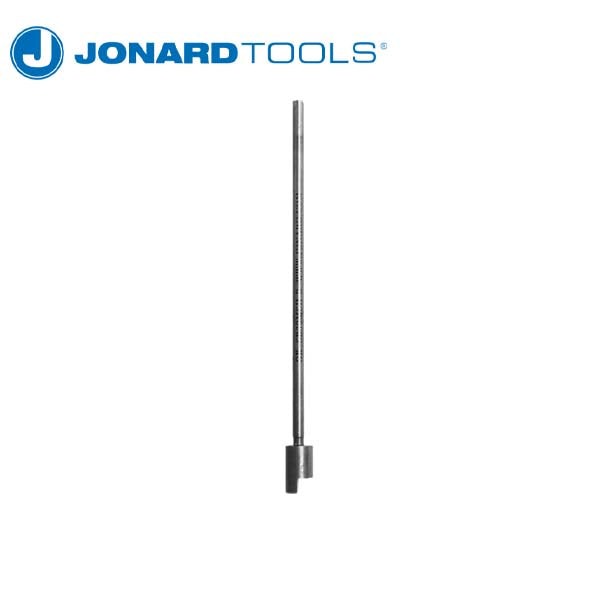

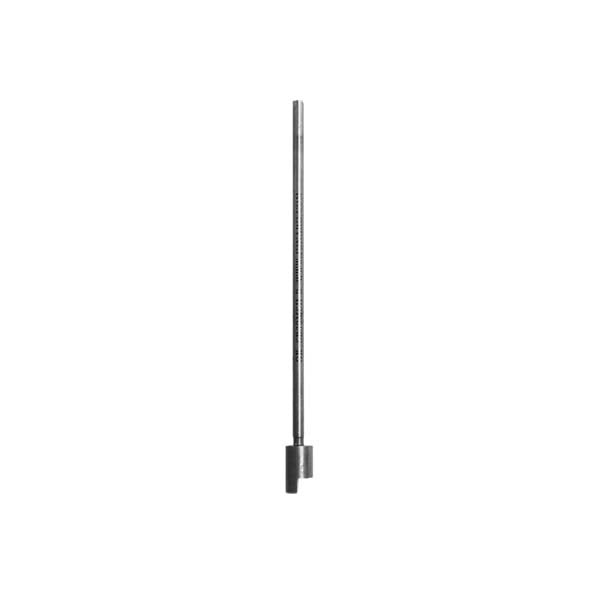

Jonard Tools - Modified Wire Wrapping Bit - 30 AWG

Jonard Tools - Modified Wire Wrapping Bit - 30 AWG

$24.89 USD
$82.95 USD $24.89 USD
Sale Sold out
Shipping calculated at checkout.

Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 30 AWG wire around binding posts when used in conjunction with a wire wrapping tool.

  • Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap
  • Recommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pins

    • Compatible Wrap Sleeve Part #: P3032 and P3032INS

      Specifications


        Sleeve Part No.

        P3032 and P3032INS (sold separately)
        Wrap Function

        Wrap
        Wrap Type

        Modified
        Wire Gauge

        30 AWG (0.25 mm)
        Maximum Insulation Diameter

        0.027" (0.69 mm)
        Minimum Terminal Diagonal

        0.031" (0.79 mm)
        Maximum Terminal Diagonal

        0.035" (0.89 mm)
        Terminal Hole Depth

        0.75" (19.05 mm)
        Terminal Hole Diameter

        0.036" (0.91 mm)
        Effective Radius

        0.064" (1.62 mm)
        Wrap Post Size

        0.025" (0.63 mm)
        Dimensions 3.11 in x 0.23 in x 0.22 in (7.89 cm x 0.58 cm x 0.55 cm)
        Weight 0.01 lb (3.632 g)
        UPC # 811490013469
