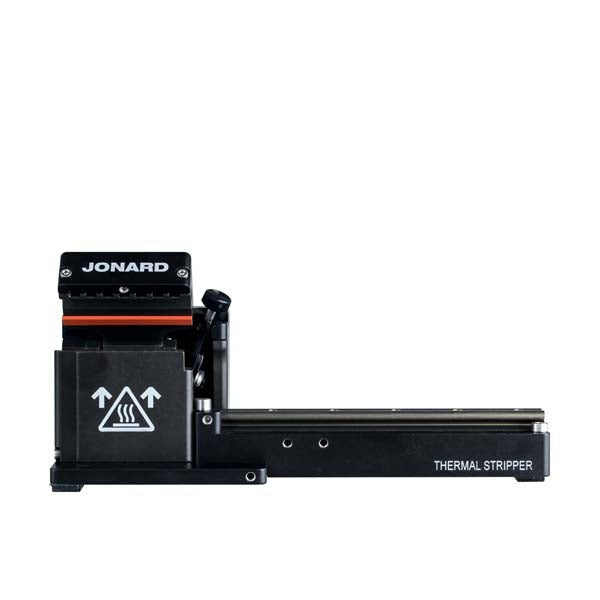

Jonard Tools - Thermal Stripper - Adjustable Blade

Jonard Tools - Thermal Stripper - Adjustable Blade

Regular price $888.28 USD
Regular price $2,960.95 USD Sale price $888.28 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Designed to thermomechanically remove coatings from optical fibers with cladding, this adjustable thermal stripper is perfect for stripping extremely difficult or baked-on coatings with ease. This thermal stripper also features the following:

  • Heater is adjustable up to 200°C, far hotter than any competing product
  • Has the ability to remove some fluoroacrylate undercoatings using high temperature
  • Adjustable temperature and time settings allow it to adapt to a wide range of acrylate coatings and cladding sizes
  • Supports optical fibers with cladding diameters from 30 µm to 1000 µm, with buffer diameters up to 1200 µm, including 250 µm, 400 µm, and 900 µm coated fibers
  • Compact and low-maintenance benchtop design makes this easy and convenient to use
  • Supports Fitel, Fujikura, and Ericsson fiber holder platforms, and a Universal Clamp for LDF or any other type of fiber (each sold separately)
  • Includes: Adjustable Thermal Stripper, Power Supply, Power Cord, Cleaning Brush
Specifications


Blade Type

Adjustable

Supported Fiber Buffers

≤ 1200 µm

Supported Fiber Types

30 µm-1000 µm cladding

Adjustable Temperature Range

60-200°C, or ambient

Adjustable Heat Time Range

0-30 seconds (2 second increments)

External Power Supply

100-240 VAC, 47-63 Hz

Dimensions

5.1" x 2.9" x 2.8" (129.5 mm x 73.5 mm x 71 mm)

UPC # 811490011243
