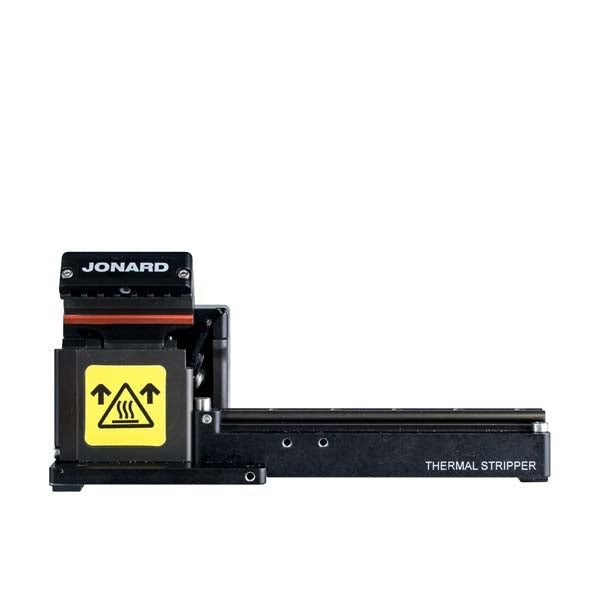

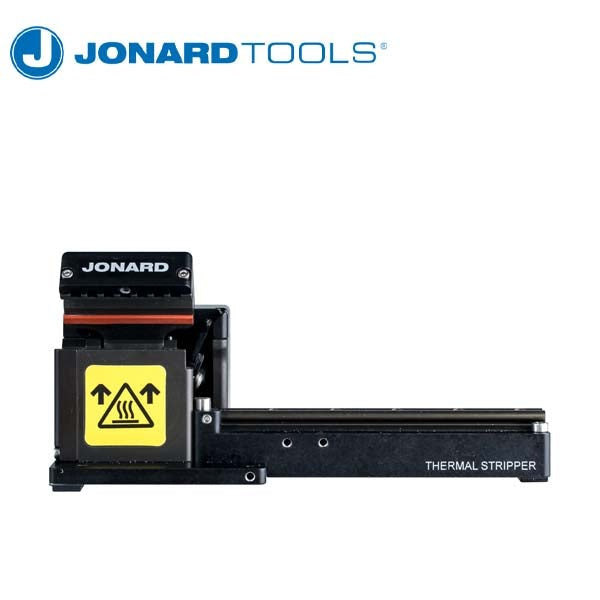

Jonard Tools - Thermal Stripper - Fixed Blade
Jonard Tools - Thermal Stripper - Fixed Blade
Regular price
$822.28 USD
Regular price
$2,740.95 USD
Sale price
$822.28 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Designed to thermomechanically remove coatings from optical fibers with cladding, this thermal stripper is perfect for stripping extremely difficult or baked-on coatings with ease. This thermal stripper also features the following:
- Heater is adjustable up to 200°C, far hotter than any competing product
- Has the ability to remove some fluoroacrylate undercoatings using high temperature
- Adjustable temperature and time settings allow it to adapt to a wide range of acrylate coatings and cladding sizes
- Supports optical fibers with cladding diameter of 125 µm, with buffer diameters from 250 µm to 900 µm, including 250 µm, 400 µm, and 900 µm coated fibers
- Compact and low-maintenance benchtop design makes this easy and convenient to use
- Compatible with Fitel, Fujikura, and Ericsson fiber holder platforms, and a Universal Clamp for LDF or any other type of fiber (each sold separately)
- Includes: Fixed Thermal Stripper, Power Supply, Power Cord, Cleaning Brush
| Blade Type |
Fixed |
|---|---|
| Supported Fiber Buffers |
250 µm-900 µm |
| Supported Fiber Types |
125 µm cladding |
| Adjustable Temperature Range |
60°C-200°C, or ambient |
| Adjustable Heat Time Range |
0-30 seconds (2 second increments) |
| External Power Supply |
100-240 VAC, 47-63 Hz |
| Dimensions |
5.1" x 2.9" x 2.8" (129.5 mm x 73.5 mm x 71 mm) |
| UPC # | 811490011236 |
