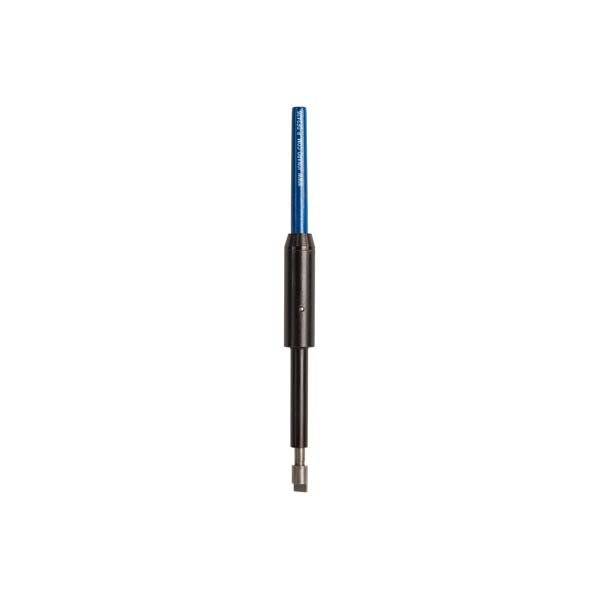

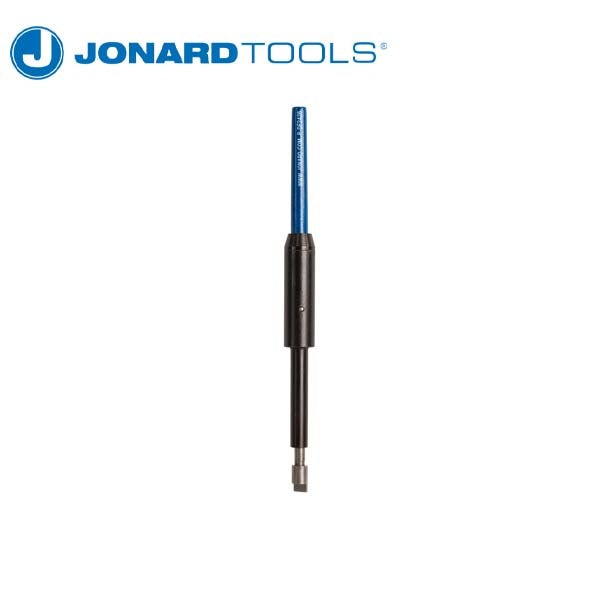

Jonard Tools - Wire Wrap/Unwrap Bit & Sleeve Set - 24-26 AWG
Jonard Tools - Wire Wrap/Unwrap Bit & Sleeve Set - 24-26 AWG
Regular price
$51.28 USD
Regular price
$170.95 USD
Sale price
$51.28 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
This patented wire 24-26 AWG wrapping/unwrapping bit and sleeve set offers a revolutionary way to approach wire wrapping by combining both wire wrapping and unwrapping functions into one bit/sleeve set. This bit and sleeve set features the following:
- Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise direction
- Easily switch between wrap and unwrap mode by retracting or extending the sleeve and flipping the switch on a PTX Wire Wrapping/Unwrapping Tool
- Maximizes the efficiency of wire wrapping and unwrapping 24-26 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrapping
- Retractable wire wrapping sleeve is coated with a durable 1000V dielectric material to prevent pin-to-pin shorting
The kit includes:
- KB-DF2426 Wrap/Unwrap Bit (24-26 AWG)
- P-DF2426 Replacement Sleeve Assembly (DFB2426, 24-26 AWG)
Specifications
| Wrap Function |
Wrap, Unwrap |
|---|---|
| Wire Gauge |
24-26 AWG (0.50-0.40 mm) |
| Minimum Terminal Diagonal |
0.054" (1.37 mm) |
| Maximum Terminal Diagonal |
0.073" (1.85 mm) |
| Terminal Hole Depth |
0.50" (12.70 mm) |
| Terminal Hole Diameter |
0.075" (1.90 mm) |
| Effective Radius |
0.098" (2.48 mm) |
| Wrap Post Size |
0.045" (1.14 mm) |
| Dimensions | 5 in x 0.44 in x 0.51 in (12.7 cm x 1.12 cm x 1.3 cm) |
| Weight | 0.09 lb (40.86 g) |
| UPC # | 811490013919 |
