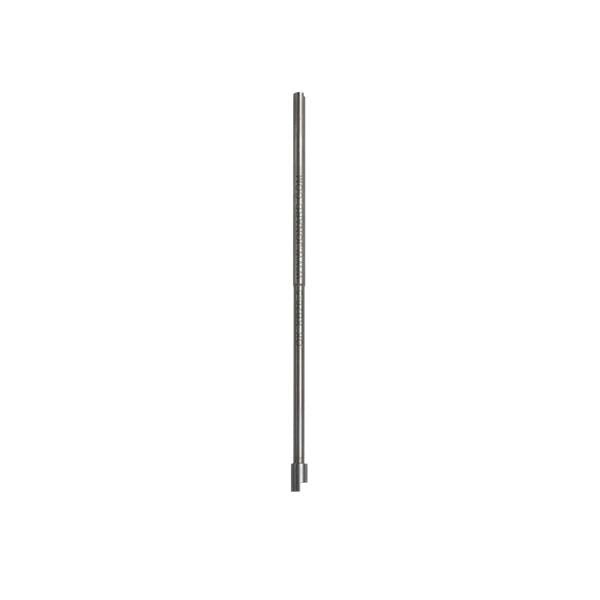

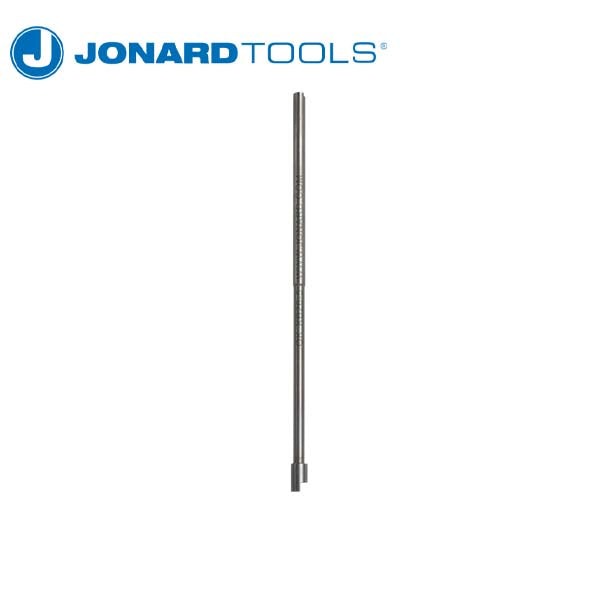

Jonard Tools - Wire Wrapping Bit - 26 AWG - 5"
Jonard Tools - Wire Wrapping Bit - 26 AWG - 5"
Regular price
$31.48 USD
Regular price
$104.95 USD
Sale price
$31.48 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Fully compatible with any make or model of wire wrapping tools, this 5" wire wrapping bit is perfect for wrapping 26 AWG wire around binding posts in hard-to-reach locations when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2426-5 and P2426-5INS
Specifications
| Sleeve Part No. |
P2426-5 and P2426-5INS (sold separately) |
|---|---|
| Wrap Function |
Wrap |
| Wrap Type |
Regular |
| Wire Gauge |
26 AWG (0.40 mm) |
| Minimum Terminal Diagonal |
0.058" (1.47 mm) |
| Maximum Terminal Diagonal |
0.073" (1.85 mm) |
| Terminal Hole Depth |
0.75" (19.05 mm) |
| Terminal Hole Diameter |
0.075" (1.9 mm) |
| Effective Radius |
0.100" (2.54 mm) |
| Wrap Post Size |
0.045" (1.14 mm) |
| Dimensions | 5.13 in x 0.23 in x 0.23 in (13.02 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.03 lb (11.804 g) |
| UPC # | 811490014237 |
