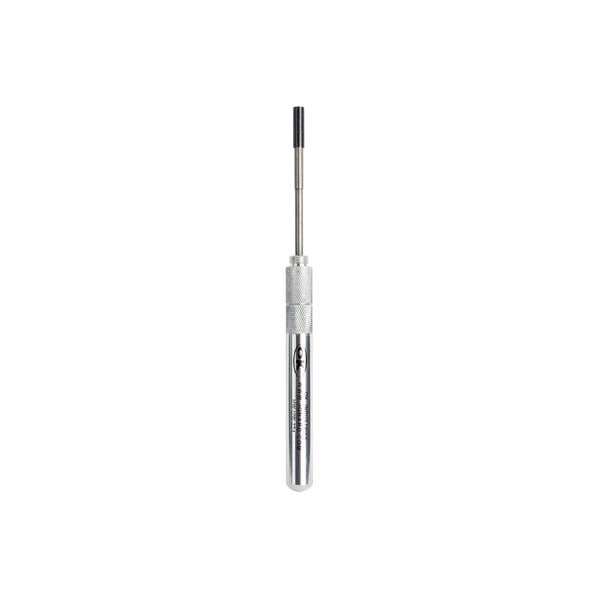

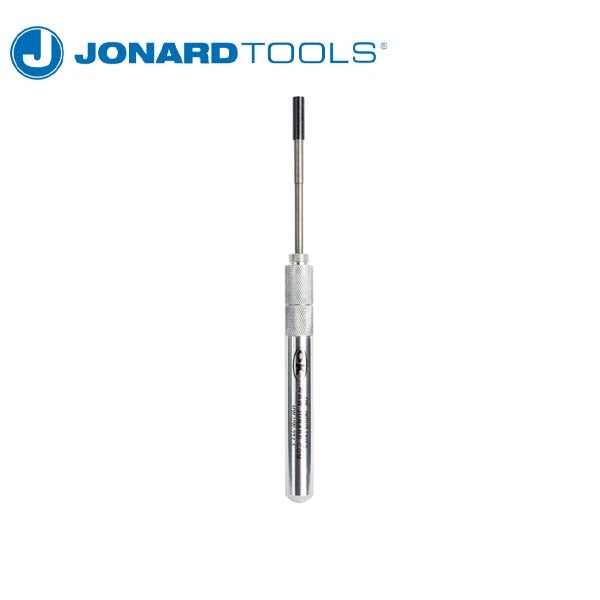

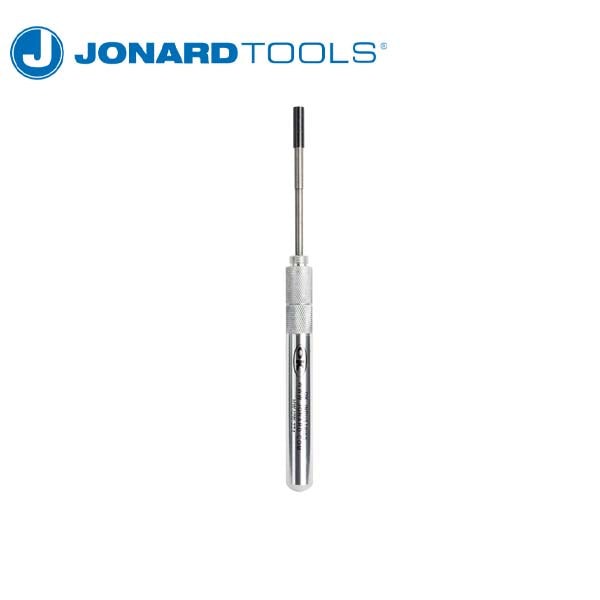

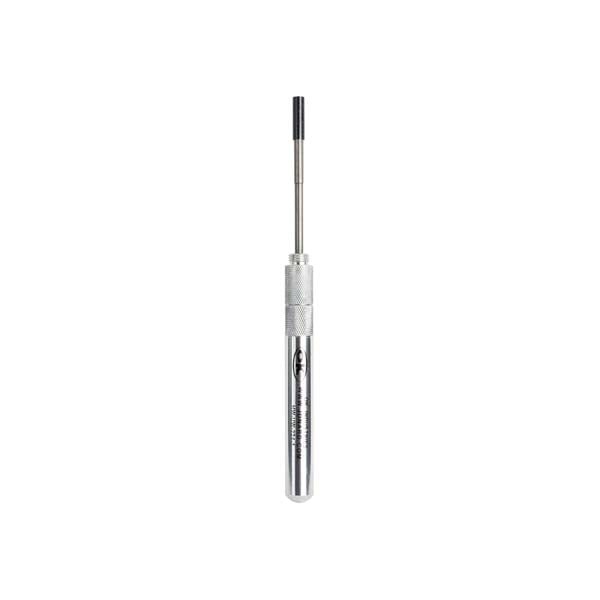

Jonard Tools - Wrap-Unwrap Tool - Optional Terminal Hole Depth
Jonard Tools - Wrap-Unwrap Tool - Optional Terminal Hole Depth
Regular price
$36.59 USD
Regular price
$121.95 USD
Sale price
$36.59 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 22-24 AWG (0.65 mm - 0.50 mm diameter) wire. This hand wrap tool also features the following:
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
Specifications
| Wrap Type | Regular |
|---|---|
| Wrap Wire Gauge | 22-24 AWG (0.65-0.50 mm) |
| Wrap Terminal Hole Diameter | 0.075" (1.90 mm) |
| Wrap Terminal Hole Depth | 20 mm, 25 mm |
| Wrap Outside Diameter | 0.218" (5.54 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Unwrap Wire Gauge | 20-26 AWG (0.80-0.40 mm) |
| Unwrap Terminal Hole Diameter | 0.070" (1.77 mm) |
| Unwrap Terminal Hole Depth | 1" (25.40 mm) |
| Unwrap Outside Diameter | 0.156" (3.96 mm) |
| Handle Type | Aluminum |
| Dimensions | 7 in x 0.5 in x 0.5 in (17.78 cm x 1.27 cm x 1.27 cm) |
| Weight | 0.08 lb (36.32 g) |
| UPC # | 811490013131 |
