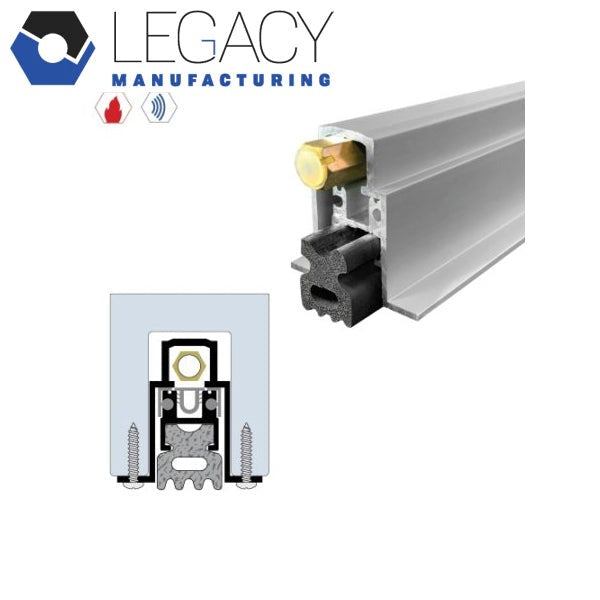

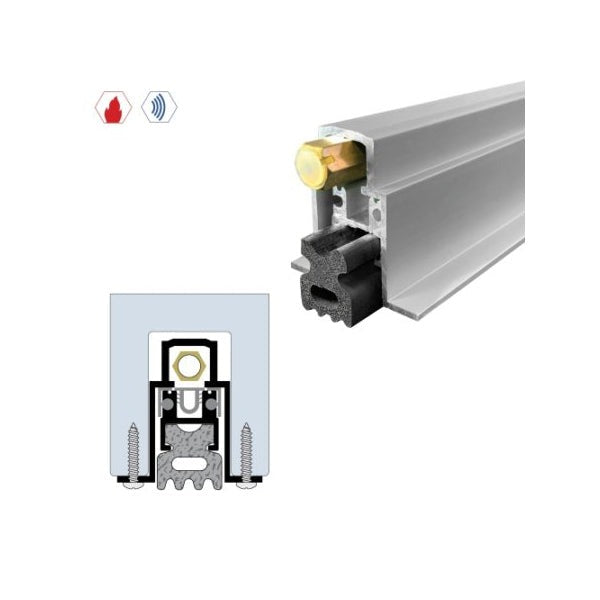

Legacy Manufacturing - 7063 - Concealed Automatic Door Bottom - 1-9/16" x 1-5/8" - Clear Anodized Aluminum - Optional Length

Legacy Manufacturing - 7063 - Concealed Automatic Door Bottom - 1-9/16" x 1-5/8" - Clear Anodized Aluminum - Optional Length

$40.86 USD
$136.20 USD $40.86 USD
Sale Sold out
Shipping calculated at checkout.
Length
Option

COMPETITOR EQUIVALENT


LEGACY NGP PEMKO ZERO
7063 423N 434ARL 360AA
    FINISHES
    • CA – Clear Anodized
    OPTIONS
    • EA – Electrical Actuator
    • FL – Fire Label
    • LS – Light Spring
    • PULL – Pull
    • PV – Pivot Doors
    • SF – Security Fasteners
    • SL – Sliding Doors
    • TD – Top Door Installation
    • MB-EC – Matte Black End Cap
    FEATURES
    • Can be made any size from 12" to 144".
    • Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
    • 5 million cycles tested.
    MATERIALS / SPECIFICATIONS
    • Solid Rubber Extrusion is Black.
    • Aluminum is Clear Anodized.
    • Brass Hex Nut.
    • Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
    • Self-leveling door seal up to maximum 1" drop.
    • Replacement closed cell sponge neoprene – Part #4363SPR
    • Unit supplied standard with 1 pair of end caps – Part #4063EC-AP.
