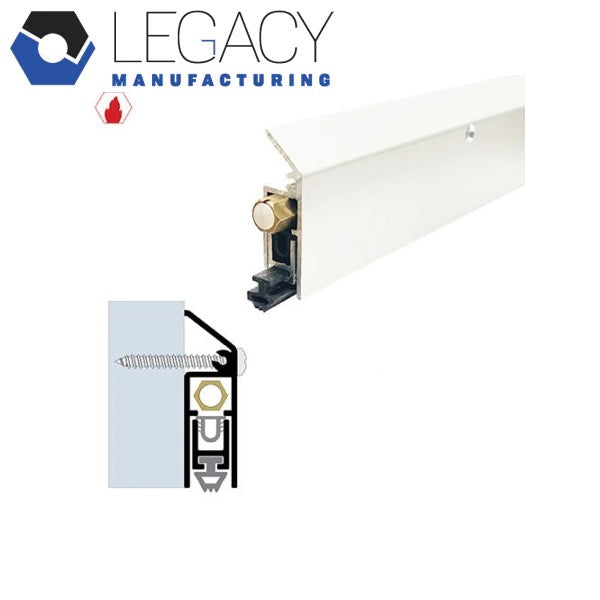

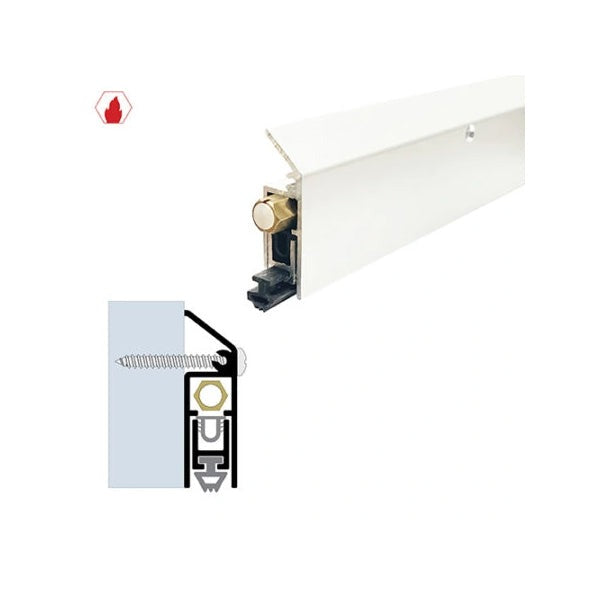

Legacy Manufacturing - 7123 - Surface Automatic Door Bottom - 19/32" x 2" - White Powder Coat - Optional Length

COMPETITOR EQUIVALENT

FINISHES

• CA – Clear Anodized
• DB – Dark Bronze Anodized
• MB – Matte Black Powder Coat
• WP – White Powder Coat

OPTIONS

• AIR – Air Flow
• EA – Electrical Actuator
• FL – Fire Label
• LS – Light Spring
• PULL – Pull
• PV – Pivot Doors
• SF – Security Fasteners
• SL – Sliding Doors

FEATURES

• Can be made any size from 12" to 144".
• Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
• 5 million cycles tested.

MATERIALS / SPECIFICATIONS

• Solid Rubber Extrusion is Black
• Aluminum is Clear Anodized
• Screws are standard (#8 x 1-1/2" SMS self-drilling screws) supplied
• Brass Hex Nut
• Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
• Self-leveling door seal up to maximum 5/8" drop.
• Unit is handed and can be reversed upon request.
• Replacement neoprene – Part #4023N
• Unit supplied standard with 1 pair of end caps – Part #4123EC-AP.

Downloads:

• Cut Sheet
• Installation Sheet
