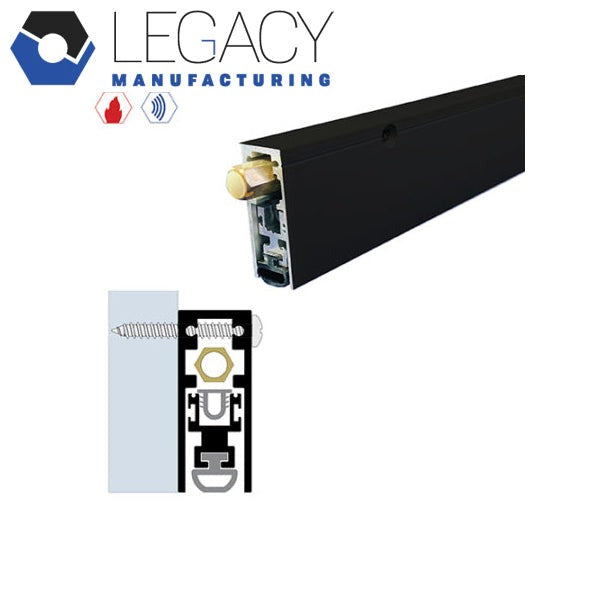

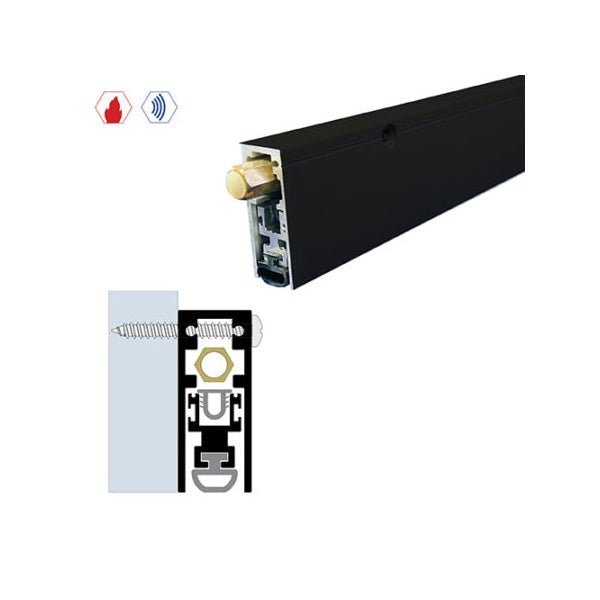

Legacy Manufacturing - 7153 - Surface Automatic Door Bottom - 11/16" x 1-13/16" - Matte Black Powder Coat - Optional Length

Legacy Manufacturing - 7153 - Surface Automatic Door Bottom - 11/16" x 1-13/16" - Matte Black Powder Coat - Optional Length

$37.89 USD
$126.30 USD $37.89 USD
Sale Sold out
Shipping calculated at checkout.
Length
Option

COMPETITOR EQUIVALENT


LEGACY NGP PEMKO ZERO
7153 222N 4131ASL 351AA
    FINISHES
    • CA – Clear Anodized
    • DB – Dark Bronze Anodized
    • MB – Matte Black Powder Coat
    • WP – White Powder Coat
    OPTIONS
    • AIR – Air Flow
    • EA – Electrical Actuator
    • FL – Fire Label
    • LL – Lead Lined
    • LS – Light Spring
    • PULL – Pull
    • PV – Pivot Doors
    • SF – Security Fasteners
    • SL – Sliding Doors
    • MB-EC – Matte Black End Cap
    FEATURES
    • Can be made any size from 12" to 144"
    • Designed to drop like a scissor (hinge side first then self-leveling to compensate for uneven floors)
    • 5 million cycles tested
    MATERIALS / SPECIFICATIONS
    • Solid Rubber Extrusion is Black
    • Clear Anodized Aluminum
    • Screws are standard (#8 x 1-1/2" SMS self-drilling screws) supplied
    • Brass Hex Nut
    • Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
    • Self-leveling door seal up to maximum 1" drop.
    • Replacement neoprene – Part #4053N or optional Part #4441N
    • Unit supplied standard with 1 pair of end caps – Part #4153EC-AP.

    Downloads:
