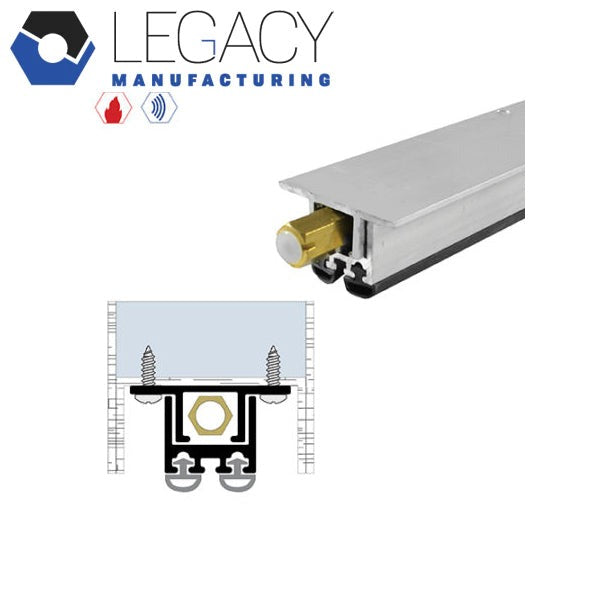

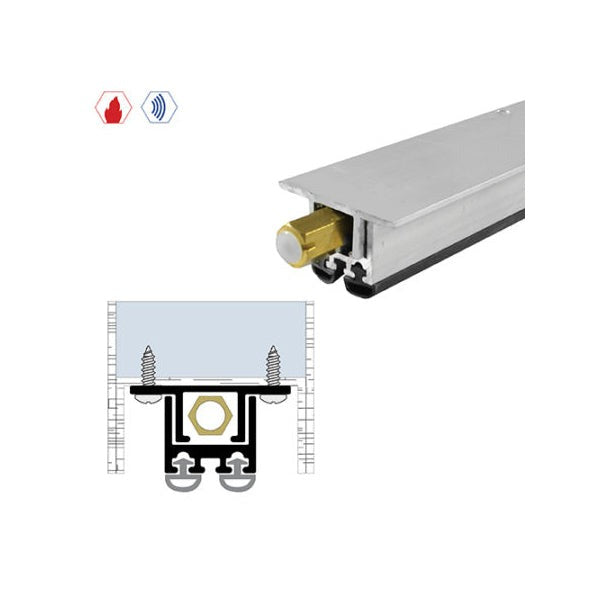

Legacy Manufacturing - 7553MA - Automatic Door Bottom - 1-3/8" x 3/4" - Mill Aluminum - Optional Length

COMPETITOR EQUIVALENT

FINISHES

• MA – Mill Aluminum

OPTIONS

• EA – Electrical Actuator
• FL – Fire Label
• LIG – Ligature Resistant
• LS – Light Spring
• PULL – Pull
• PV – Pivot Doors
• SF – Security Fasteners
• SL – Sliding Doors
• TD – Top Door Installation

FEATURES

• Can be made any size from 12" to 144".
• Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
• 5 million cycles tested.

MATERIALS / SPECIFICATIONS

• Solid Rubber Extrusion is Black.
• Screws are standard (#6 x 1/2" SMS self-drilling screws) supplied
• Brass Hex Nut
• With the Ligature Resistant option, our products have a non-removable adjusting-activating nut.
• For use on 1-3/4" and larger Hollow Metal doors
• Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
• Self-leveling door seal up to maximum 1/2" drop.
• Replacement neoprene – Part #4075N
• No end caps provided

Downloads:

• Cut Sheet
• Installation Sheet
