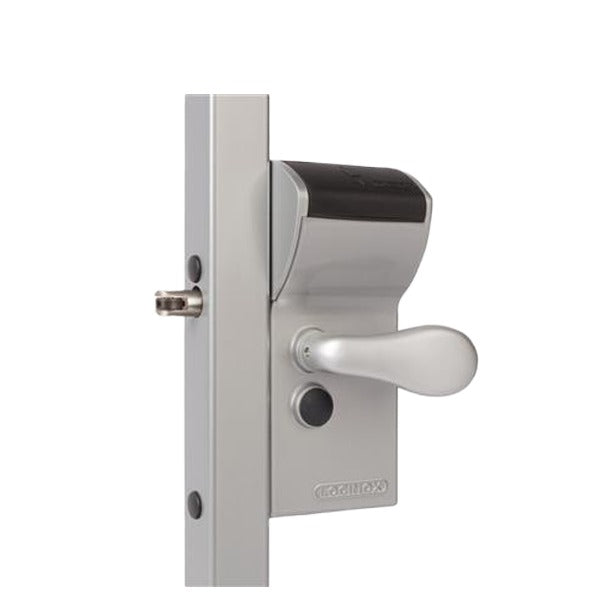

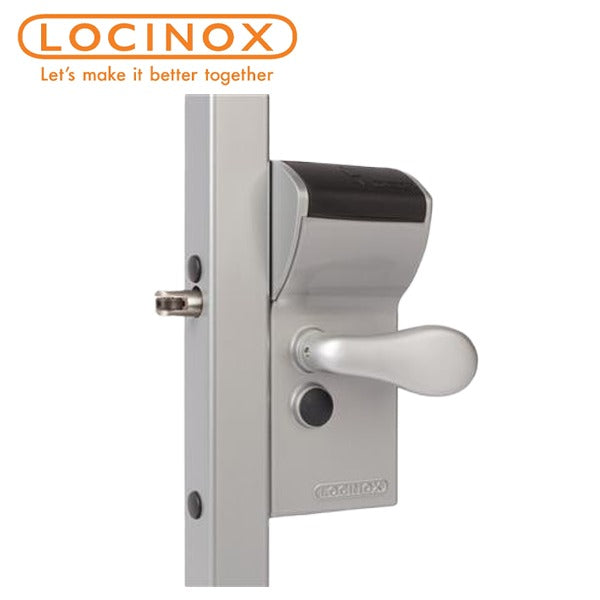

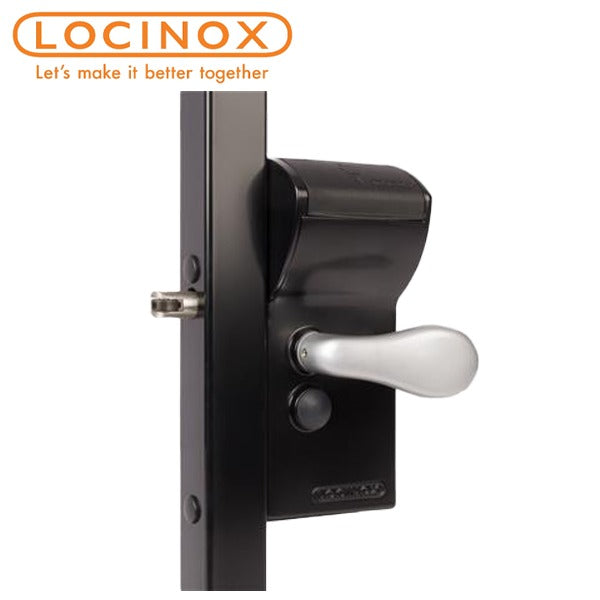

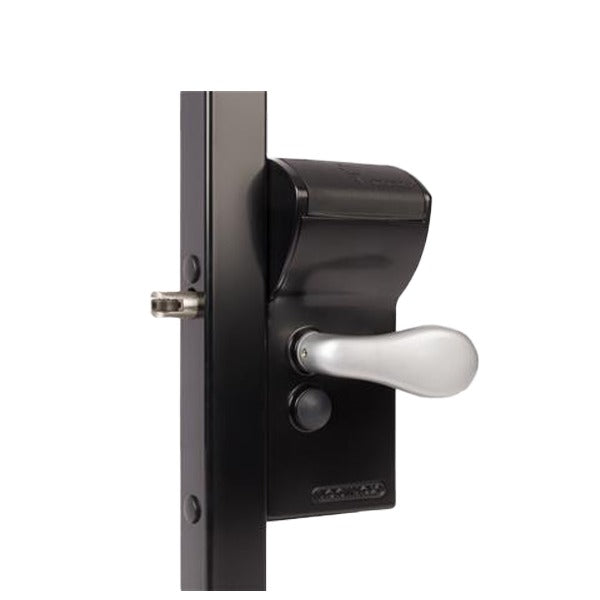

Locinox - Surface Mounted - Mechanical Lock - Code Lock w/ Secured Entrance and Fire Exit - Aluminum Handle - Optional Finish

High-quality mechanical code lock for swing gates with aluminum housing and stainless steel mechanism. This lock is 100% mechanical, so no batteries or electricity are required, which makes it very easy to equip any gate with access control. The dead bolt is used to over ride the code panel and secure the gate. The latch and dead bolt have 3/4" continuous adjustment to allow perfect latching / locking of the mechanism. A stainless steel throw of 7/8" guarantees a secure locking. Ships standard with the Club handle pair. The latch gap required is keep dependent, but the standard and security keeps require a 1-1/4" latch gap.

Features:

• ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
• Entrance secured by code, free exit
• Code panel with stainless steel push buttons on one side
• Polyamide rain and dust cover
• Easy and fast set-up or modification of the access codes
• With adjustable rollerbolt for easy closing
• Extremely strong and user-friendly mechanism
• Automatic code reset after opening by means of the handle
• Anti-code detection with integrated security press plate
• Interchangeable with all Locinox locks

• 3 Year Warranty

Downloads:

• Installation Instructions

Installation Video:
