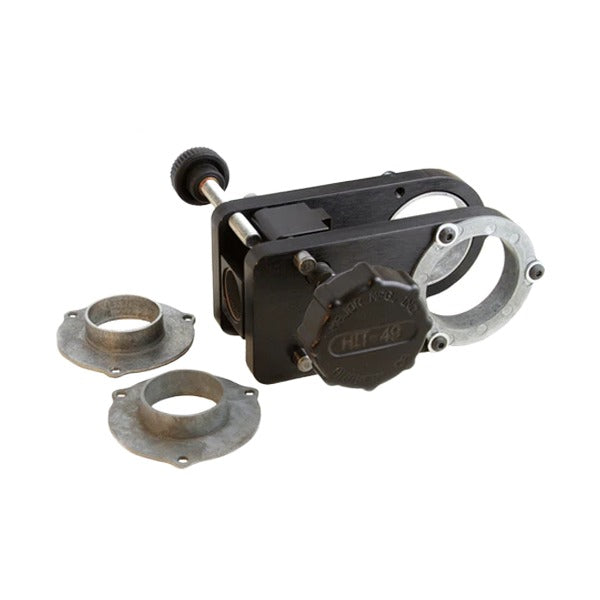

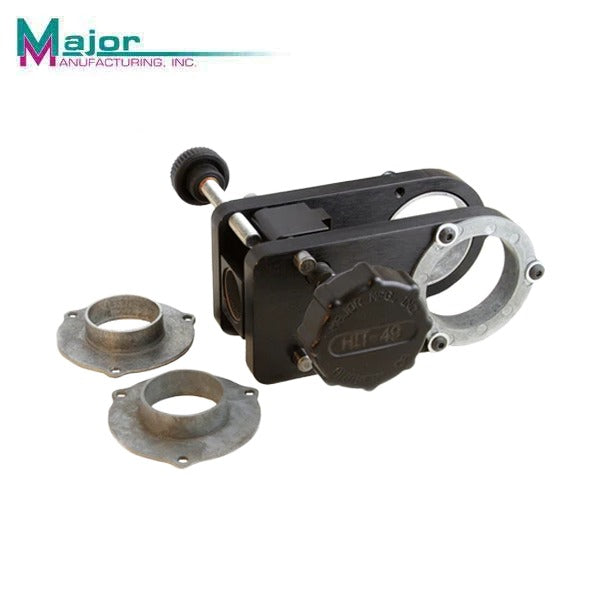

Major Mfg - DrillMaster 3 - HIT-49 - Door Lock Installation Jig / Drill Guide

This is a DrillMaster door installation tool

Features:

• Designed to be used with standard hole saws
• Supplied with replaceable hole saw guides for both 1-1/2" and 2-1/8" hole saws.
• Door range is 1-3/8" to 2-1/2"
• Backset is adjustable for both 2-3/8" and 2-3/4"
• Machined from aluminum and has an anodized black finish
• Includes both 1-1/2" and 2-1/8" break-out plates

Specifications:

• Door Thickness: 1-5/16" To 2-1/4"
• Door Type: Wood Or Metal
• Door Backset: 2-3/8" Or 2-3/4"
• Cross Bore:1-1/2" Or 2-1/8"
• Edge Bore: 1"
• Drill Bit Type Cross Bore: Hole Saw
• Drill Bit Type Edge Bore: Wood Door - Auger Bit, Metal Door - Hole Saw
• Does NOT include Bits

Downloads:

Installation Manual
