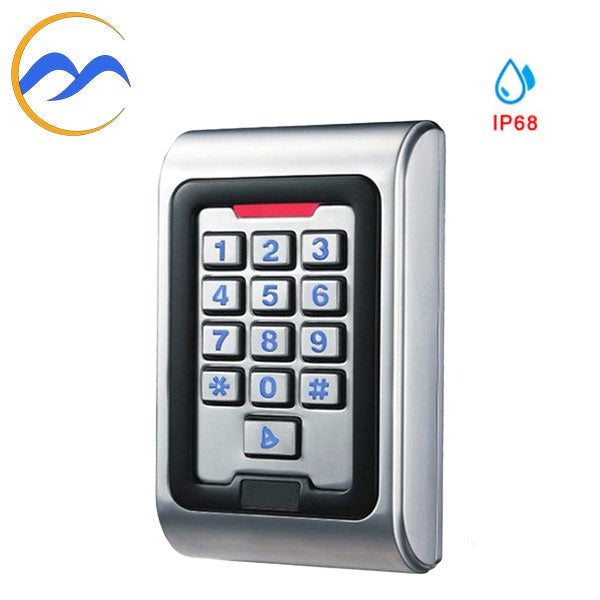

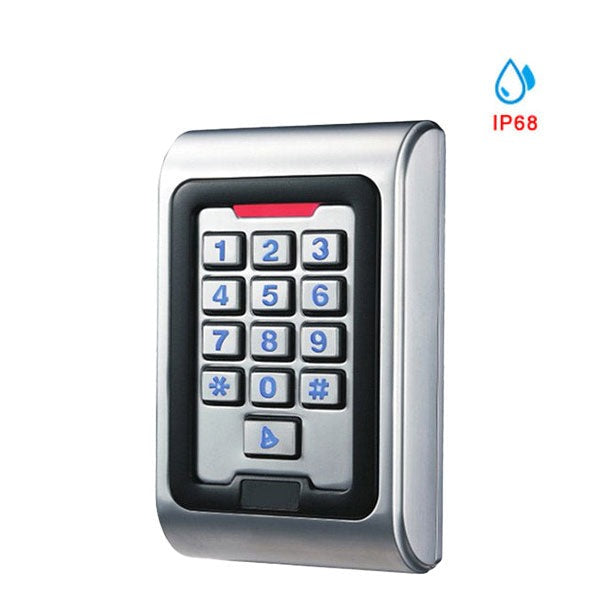

Malibu - Keypad Card Reader - Waterproof - 12VDC - 13.56MHz Mifare Wiegand

This Malibu Keypad Card Reader access control system boasts a sturdy, anti-vandal metal casing, ensuring long-lasting durability even in harsh environments. It offers three access methods: card, pin, or a combination of both for maximum security and user convenience. The system is compatible with Mifare 13.56 cards and features a crystal-clear digital backlit keypad for easy access even in low-light conditions.

Features:

• Metal case, anti-vandal
• WG26 Input/output
• 3 accesses: card, pin, card+pin
• Mifare 13.56
• Digital backlit keypad
• Doorbell support and interface: button and circuit segregate, any doorbell can be connected
• Because of ultra low power consumption, the battery of the wireless reader can work as long as 6 months. (based on 30 times/day)
• Waterproof degree: IP68
• User capacity: 2000 card user card, 2000 user password
• Environment Humidity: 10%～90%
• Lock output: ≤3A
• Working voltage: DC12V±10％
• Static electricity: ≤30mA
• Alarm output: ≤20A
• Output short circuit protection time: ≤100μS
• Card read distance: 5-8 cm (1.97-3.15in)

• Ambient temperature: -45º-60ºC (-49-140ºF)
• Door Opening Time: 0-99s (Adjustable)
• Dimensions: 118 x 78 x 25mm (4.65 x 3.07 x .98 in)

Package Entails:

• 1 x Access Control Keypad
• 2 x Installation Screws and wall anchors
• 1 x hex driver
• 1 x Instruction Manual

Downloads:

• Spec Sheet
