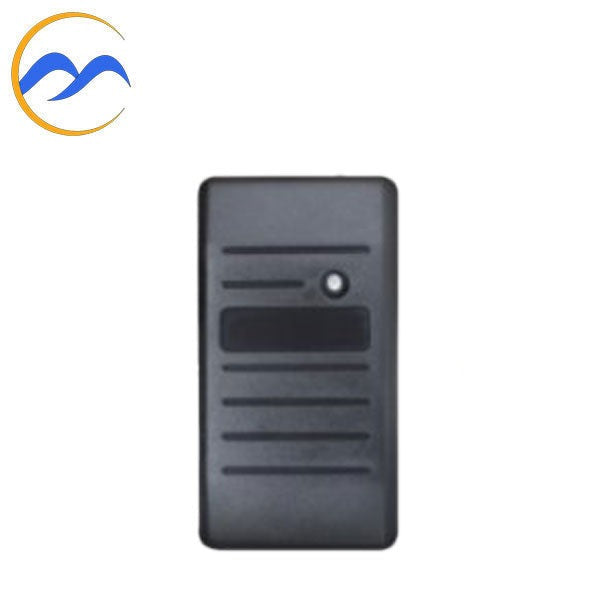

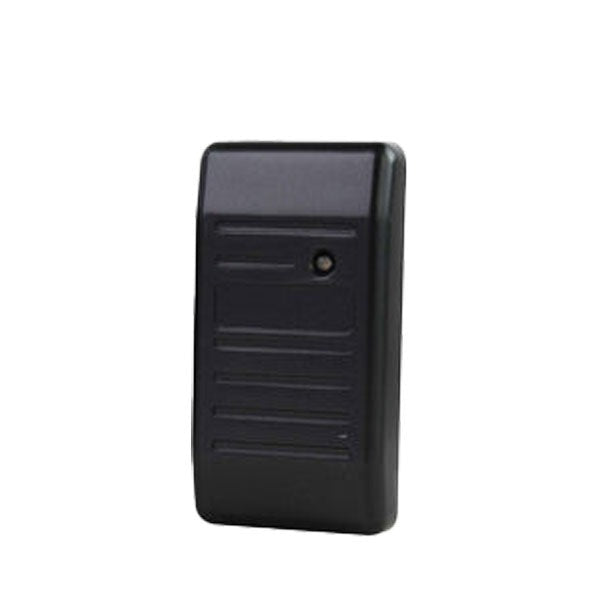

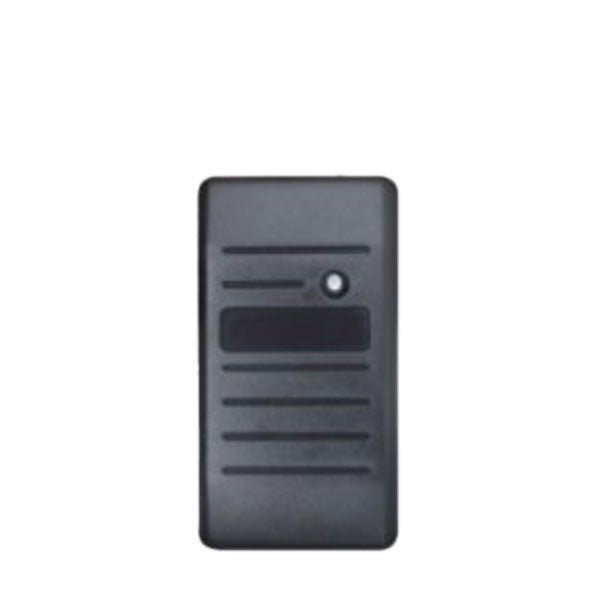

Malibu - RFID Reader - Waterproof - 6-14VDC - 125KHz and 13.56MHz (Black)

This Malibu RFID Reader is a powerful RFID reader module, ideal for access control systems! This versatile module boasts a compact design, fast read speeds, and wide compatibility. With an operational range of up to 5cm and a reading time of under 300ms, it offers secure and efficient access control. For flexible installation, it features easy mounting options and accepts a wide range of power sources. Additionally, its weatherproof design and durable build ensure reliable operation in various environments.

Features:

• Read Range: Up to 5cm

• Reading Time (Card): ≤300ms
• Power / Current: DC 6-14V / Max.70mA
• Output Format: 26bit/34bit Wiegand (default)
• Easy to install on Door Frame or Mullion
• Input Port: 2each (External LED Control, External Buzzer Control)
• Beeper: Yes
• Indoor / Outdoor Operation
• Waterproof IP65
• Reverse Polarity Protection
• Solid Epoxy Potted
• LED Indicator: 2 Color LED Indicators(Red and Green)
• Operating Temperature: -20° to +65°C
• Operating Humidity: 10% to 90% relative humidity non-condensing
• Color: Black
• Material: ABS+PC with texture

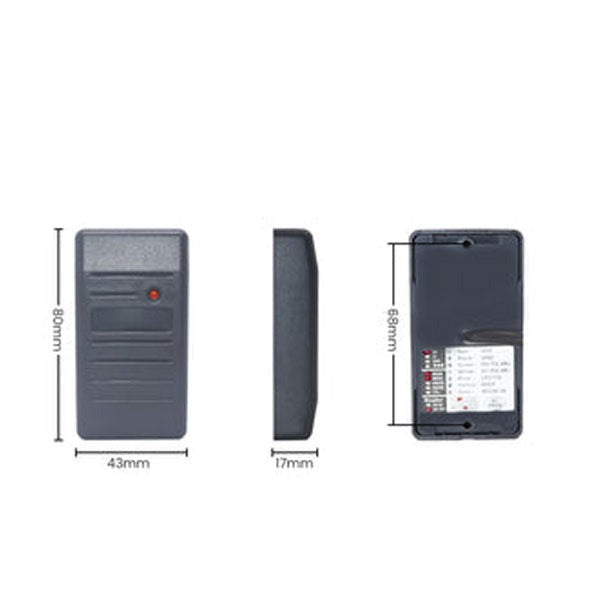

• Dimension: (80L x 43W x 16H mm) (3.15L x 1.69W x .63 in)

Downloads

• Spec Sheet
