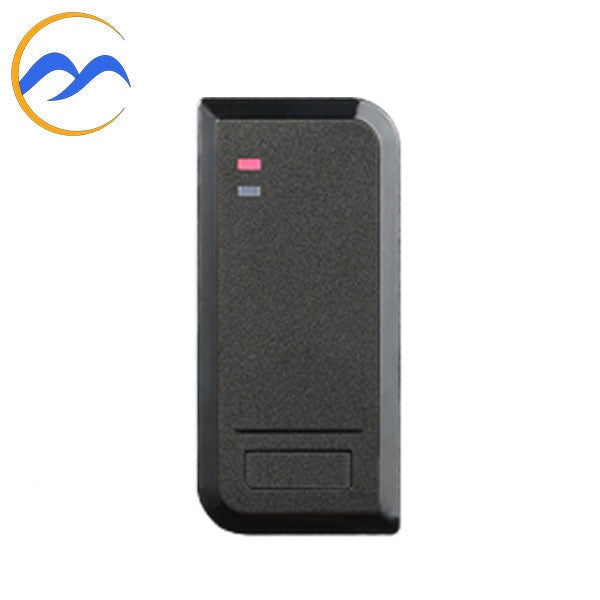

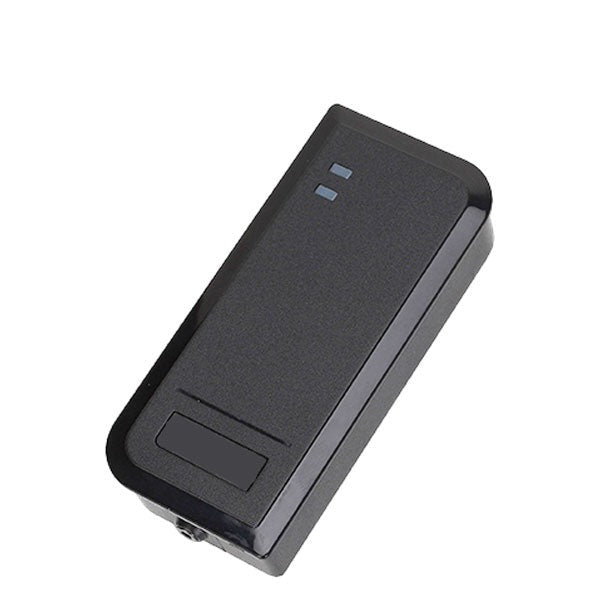

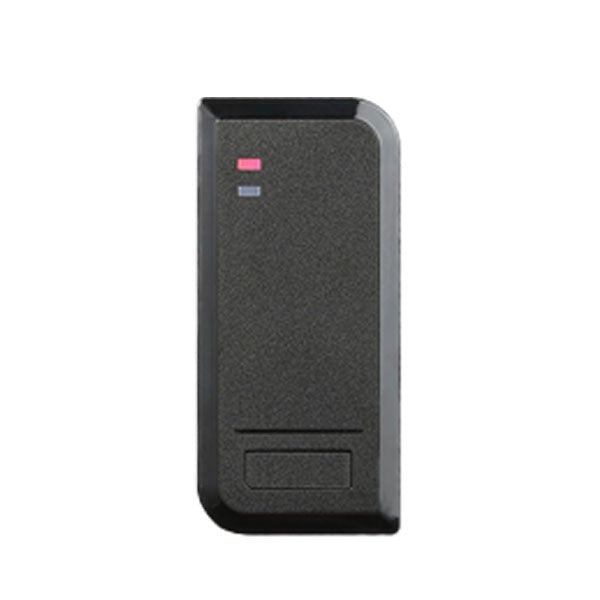

This Malibu RFID Reader is a slim Wiegand output proximity reader that is compatible with any Wiegand controller. The reader is fully potted and can operate at extreme temperatures which allows it to be mounted either outdoors or indoors. this reader will work against metal door frames
Features:
Waterproof, conforms to IP66
Wiegand 26~37 bits output (default: 34bits)
The card type is Mifare 13.56Mhz / 125KHz EM card
Working temperature: 40 oC ~ 60 oC (-40 oF ~ 140 oF)
Reading Range: 7 cm
Specifications:
Operating Voltage
9~18V DC
Frequency
13.56Mhz / 125KHz
Card Type
MiFare / EM card
Reading Range
7 cm
Output Format
Wiegand 26 bits (26~37 bits available upon request)
