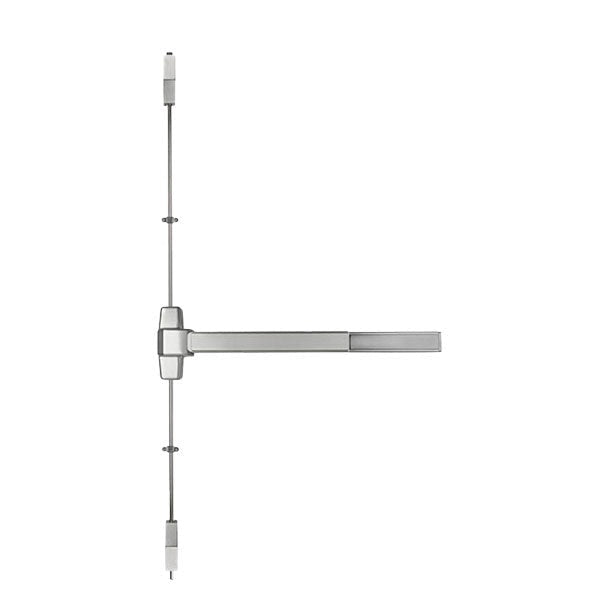

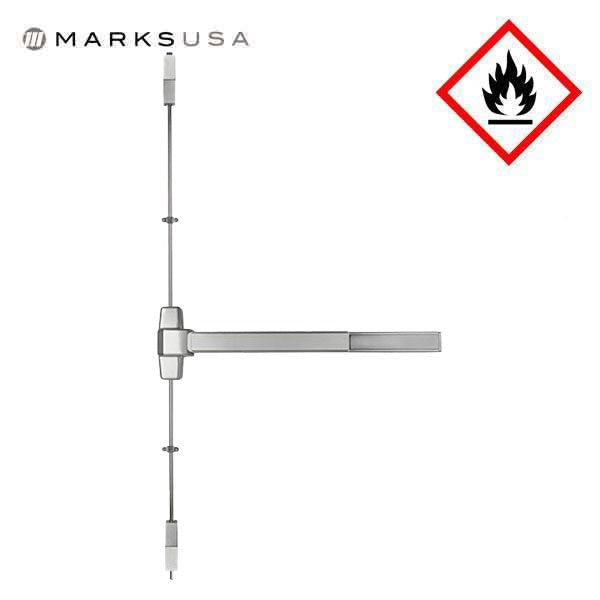

Marks USA - M9900 - Surface Mounted Vertical Rod Exit Device - Fire Rated - 32D - Satin Stainless - Optional Size - Grade 1
Marks USA - M9900 - Surface Mounted Vertical Rod Exit Device - Fire Rated - 32D - Satin Stainless - Optional Size - Grade 1
Couldn't load pickup availability
M9900 Exit Devices from Marks USA offer a simple, heavy-duty, easily installed solution where high-quality panic & fire-listed hardware is needed. These extremely durable, Grade 1 exit devices are perfect for high impact applications such as schools, universities & other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touchbar assembly minimizes catch hazards. To help alleviate the problem of end caps breaking off due to abuse from carts, they have a mitered steel flush-mounted Panic Protector End Cap.
| Device Head Cover | Stainless steel |
| Chassis | Steel, plated |
| Mechanism Housing | Extruded aluminum |
| Top Latch | Stainless Steel 37/64” (14.8mm) |
| Top Strike | Included |
| Bottom Latch | Stainless Steel 37/64” (14.8mm) |
| Bottom Strike | Included |
| Hand | Non handed |
| Mounting | Machine screws standard |
| Dogging feature | Allen Key Included |
| Latch Bolt |
3/4″ throw, stainless steel |
| Dogging | Allen wrench type |
| Standard Height | 7’ doors |
| Applications | • For use on single door or pair of doors • 1 3/4” (44 mm) door thickness standard • RHR or LHR hollow metal, wood, and mineral core doors • Minimum Stile Width: 3 1/2” (89 mm) |
| Finish | US32D - Satin Stainless |
| Certifications |
ANSI/BHMA Grade 1 Panic Exit Hardware Fire Rated |
| Manufacturer Warranty | Marks Lifetime Mechanical Warranty |
