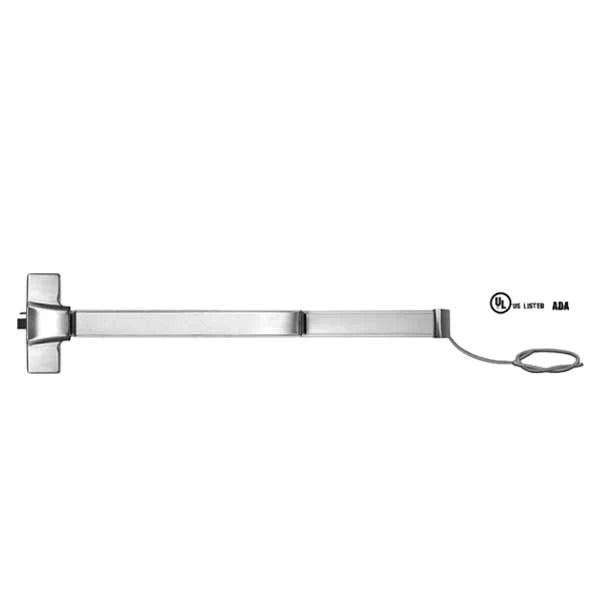

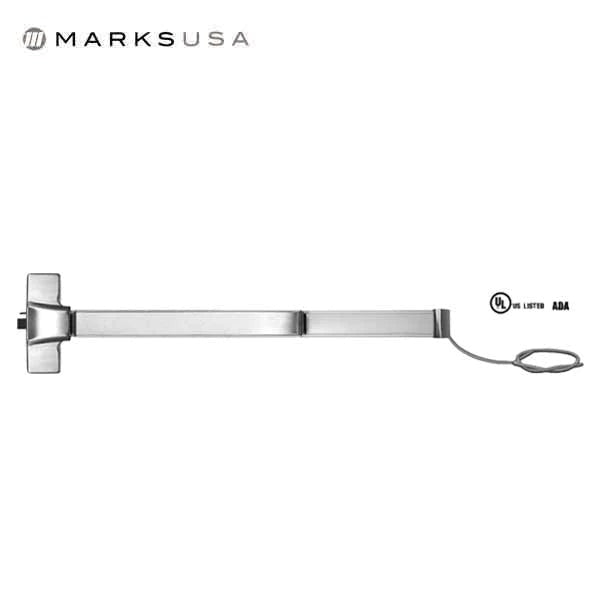

Marks USA - M9900ER - Rim Panic Exit Device - Electric Latch Retraction - Simultaneous Dogging - 32D Satin Stainless - 48" - Grade 1
Marks USA - M9900ER - Rim Panic Exit Device - Electric Latch Retraction - Simultaneous Dogging - 32D Satin Stainless - 48" - Grade 1
Couldn't load pickup availability
M9900 Exit Devices from Marks USA offer a simple, heavy-duty, easily installed solution where high-quality panic hardware is needed. These extremely durable, Grade 1 exit devices are perfect for high impact applications such as schools, universities & other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touchbar assembly minimizes catch hazards. To help alleviate the problem of end caps breaking off due to abuse from carts, they have a mitered steel flush-mounted Panic Protector End Cap. This model comes with electric latch retraction and simultaneous dogging.
More Information Below
| Function | Electric latch retraction with simultaneous dogging |
| Operation | Momentary or maintained latch bolt and push pad retraction. Automatic re-triggering of latch retraction |
| Voltage | 24VDC @ 450 mA activation, 180 mA continuous |
| EMC | 2-station sequencer required for automatic doors only |
| End Cover | Stainless steel beveled “Panic Protector” design |
| Strike | Roller strike |
| Rail Assembly | Heavy-Gauge Stainless Steel |
| Dead latch Bolt: | Stainless Steel 3/4” throw |
| Door Width |
Doors up to 48" |
| Dogging feature | Allen Key |
| Latch Bolt |
3/4″ throw, stainless steel |
| Dogging | Allen wrench type |
| Finish | US32D - Satin Stainless |
| Certifications |
UL listed: For “Panic Hardware” ANSI: ANSI 156.3 (2001), requirements for Grade 1 |
| Manufacturer Warranty | Marks Lifetime Mechanical Warranty |
