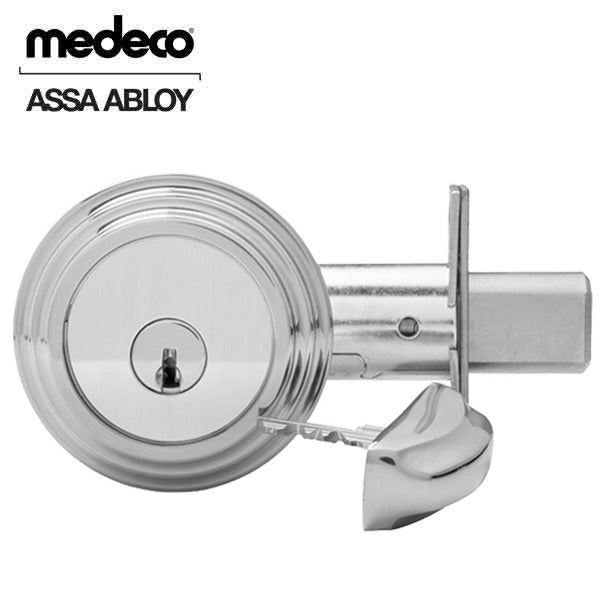

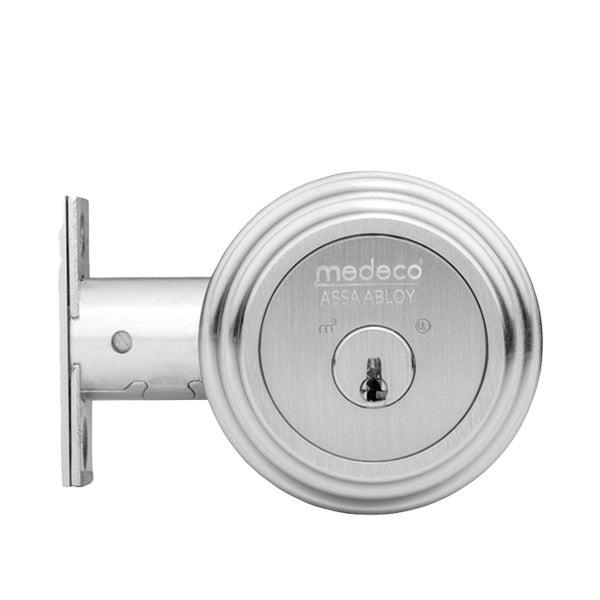

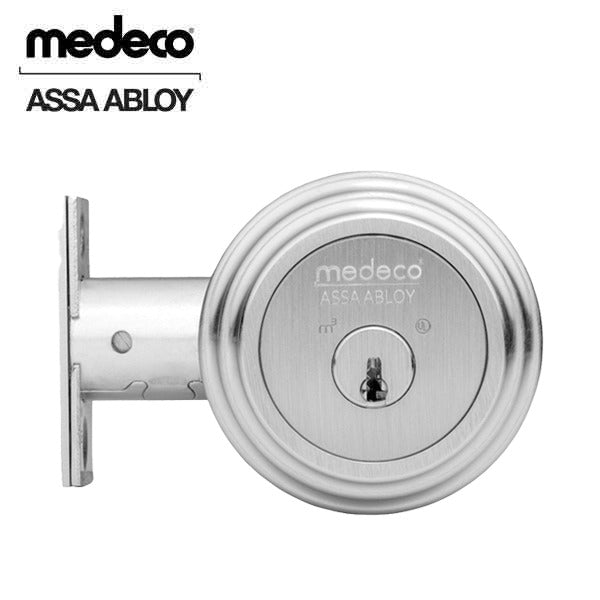

Medeco - 11TR533 - Maxum Residential - M3 Biaxial - 5-Pin - Captive Deadbolt - 2 3/8" - DL Keyway Pinned - 19 - Satin Nickel - Grade 1

The Maxum Deadbolt is a UL437 Listed, BHMA A156.5 Grade 1 Certified deadbolt, offering unmatched protection against unauthorized key duplication, bumping attacks, picking, drilling, wrenching, kicking, or other physical abuse. A solid 1'' hardened steel bolt in heavy gauge steel housing provides maximum defense against physical attack. This also features a Captive Thumbturn, which converts the inside cylinder to a thumbturn for easy exit when the facility is occupied. and is easily converted back to a double cylinder when unoccupied for maximum security. All by simply removing and replacing the thumbturn from the cylinder.

Features:

• Can be masterkeyed into existing lock sets.
• Key Control protects against duplication.
• A special elevating and rotating pin tumbler design, along with false slots on the bottom pins, mushroom top pins and a sidebar mechanism, work together, to provide superior pick resistance.
• Angled cuts on the keys, along with fore and aft positioning, in the Medeco3 design, provide added dimensions that dramatically increases key combinations.
• UL437 listing provides assurance that cylinders meet universal standards for drill and pick resistance and resistance against other types of forced attack.




Specifications:

Downloads:

• Drilling Template
• Installation Guide
