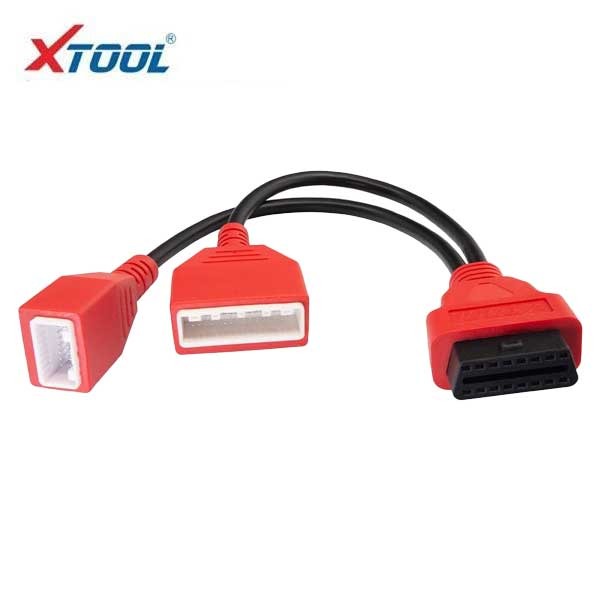

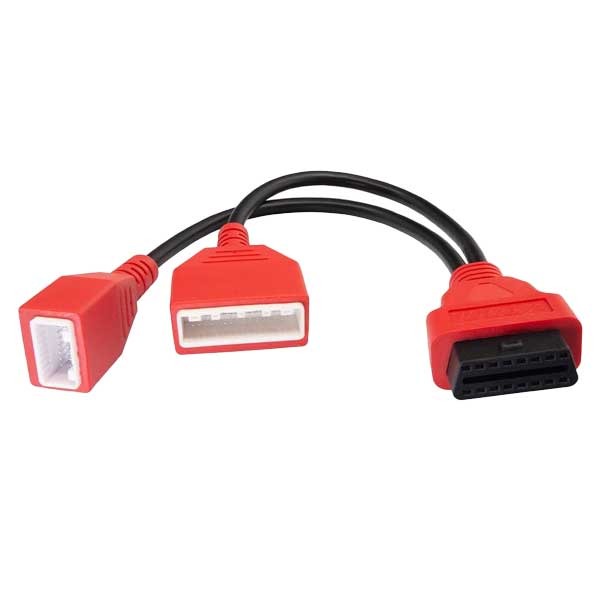

Nissan 16 & 32G Bypass Cable with CGW Adapter (XTool)

The 2020+ Nissan Sentra 16 & 32G Bypass Cable by XTool is designed to interface almost all automotive transponder programmers that have the capability of programming 2020+ Nissan Sentra vehicles. It functions by intercepting your programmer’s CAN high and low signals and passing them through the 16+32 connectors bypassing the security gateway module of the vehicle. This allows access to all modules on the CAN network for diagnostics / bi-directional controls /programming.

Features:

• Compatible with Nissan Sentra 2020 and newer models
• Compatible with Autel MaxiSYS diagnostic and MaxiIM IMMO tablets
• Enables Read/Erase of all available system modules
• Enables bi-directional active tests and maintenance tasks
• Supports add key for IM tools, IMMO part replacement, IMMO status scan
• OE-style connection for secure connection with no back probe necessary
• Enables viewing and graphing of Live Data



How to Use:

• Plug the main cable of your programmer of choice into the female OBD port of the adapter.

• Locate the security gateway module on the vehicle. Located under the drivers dash.

• Locate and unplug the connectors currently plugged into the module. Plug in the 16+32 connectors directly into the module.

• Use your programmer of choice to select by vehicle or system type and program like normal.

Compatible with the following:

• 2020 - 2022 Nissan Sentra
